REMOVAL
FRONT
NOTE: The notched end of the wiper element flexor should always be oriented towards the end of the wiper blade that is nearest to the wiper pivot.
1. Lift the front wiper arm (2) to raise the wiper blade and element off of the glass, until the wiper arm hinge is in its over-center position.
2. To remove the wiper blade from the wiper arm, depress the pivot block latch release tab (4) under the tip of the arm and slide the blade away from the tip towards the pivot end of the arm far enough to disengage the pivot block (3) from the hook formation (5) on the end of the arm.
3. Extract the hook formation on the tip of the wiper arm through the opening in the wiper blade superstructure (1) just ahead of the wiper blade pivot block/latch unit.
CAUTION: Do not allow the wiper arm to spring back against the glass without the wiper blade in place or the glass may be damaged.
4. Gently lower the tip of the wiper arm onto the glass.
REAR
NOTE: The notched end of the wiper element flexor should always be oriented towards the end of the wiper blade that is nearest to the rear wiper motor output shaft.
1. Disengage the rear wiper arm support from the rear wiper arm park ramp on the right side of the tailgate just below the rear flip-up glass.
2. Lift the rear wiper arm to raise the wiper blade and element off of the tailgate and the rear flip-up glass.

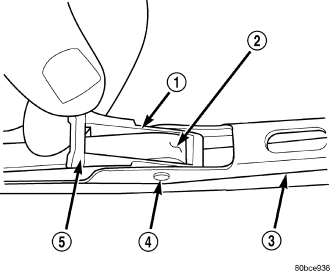

3. To remove the wiper blade from the wiper arm, carefully lift up the pivot block latch release tab (5) on the top of the wiper arm to unlatch it from the arm (2).
4. Raise the pivot block latch release tab (4) until it is perpendicular to the rear wiper blade superstructure (1).
5. Slide the rear wiper blade away from the tip of the arm towards the pivot end of the arm far enough to disengage the pivot block from the hook formation (2) on the end of the arm (5).
6. Extract the hook formation on the tip of the wiper arm from the window in the wiper blade pivot block/latch unit.
CAUTION: Do not allow the wiper arm to spring back against the tailgate or the flip-up glass without the wiper blade in place or they may be damaged.
7. Gently lower the wiper arm and place the arm support in the park ramp.
