WIPER ARM PARK RAMP
REMOVAL
1. Disengage the rear wiper arm support from the wiper arm park ramp on the right side of the tailgate just below the rear flip-up glass.
2. Lift the wiper arm and blade away from the tailgate until the wiper arm hinge is in its over-center position.

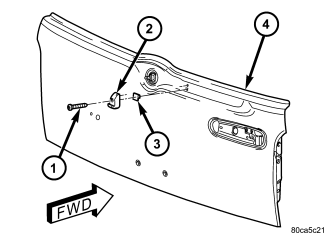

3. Remove the screw (1) that secures the wiper arm park ramp (2) to the tailgate outer panel (4).
4. Remove the wiper arm park ramp from the tailgate outer panel.
INSTALLATION
1. Check to be certain that the rivet nut (3) is properly installed and in good condition in the tailgate outer panel (4).
2. Position the wiper arm park ramp (2) onto the tailgate outer panel.
3. Install and tighten the screw (1) that secures the wiper arm park ramp to the tailgate outer panel. Tighten the screw to 5 N·m (45 in. lbs.).
4. Lower the rear wiper arm and blade and place the wiper arm support onto the wiper arm park ramp.
