BUMPER - FRONT
REMOVAL

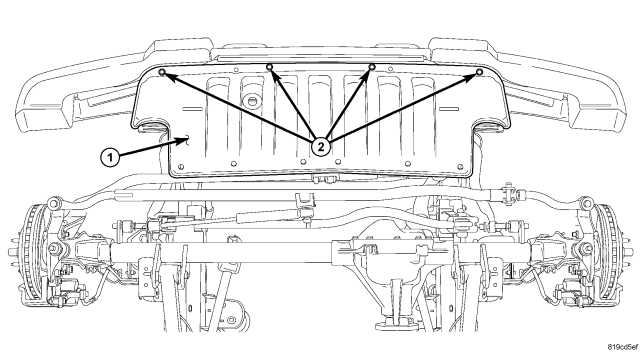

1. Remove the push pin fasteners (2) and release the splash shield (1) from the bumper.

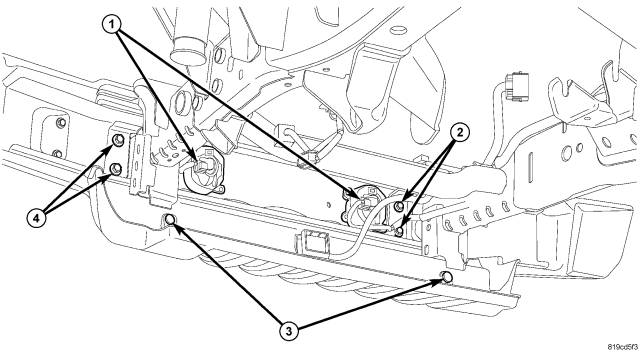

2. Remove the push pin fasteners (3) and remove the splash shield.
3. Disconnect the electrical connectors (1).
4. Remove the outer (4) and inner support bolts (2) and remove the front bumper.
INSTALLATION
1. Install the bumper and install the inner (2) and outer support bolts (4).
2. Tighten the support bolts to 90 N·m (66.5 ft. lbs.).
3. Connect the electrical connectors (1).
4. Install the splash shield and install the push pin fastener (3).
5. Position the splash shield (1) onto the bumper and install the push pin fasteners (2).
