BUMPER - REAR
REMOVAL

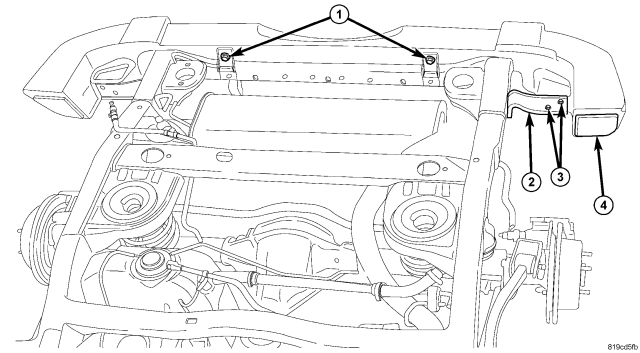

1. Remove the bumper bracket bolts (3).
2. Remove the bumper support bolts (1) and remove the bumper (4).
INSTALLATION
1. Install the bumper (4) and install the bolts (1) and (3).
2. Tighten the bolts (1) and (3) to 25 N·m (18.5 ft. lbs.).
