CYLINDER-SLAVE
REMOVAL
1. With transmission in neutral, position vehicle on hoist.

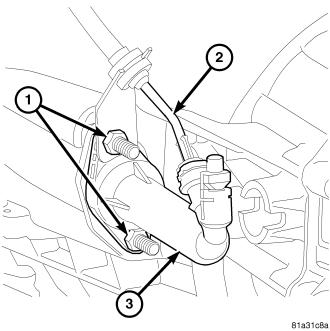

2. Remove mounting nuts (1) from slave cylinder (3).
3. Pull hydraulic line (2) clip and the line with bracket from slave cylinder (3).
4. Remove slave cylinder.
INSTALLATION
1. Install slave cylinder (3) in transmission.
2. Install hydraulic line (2) and with bracket to slave cylinder.
NOTE: Verify O-ring is on hydraulic line.
3. Install slave cylinder nuts (1) and tighten to 23 N·m (17 ft. lbs.).
4. Bleed hydraulic system.
