ANTENNA-SATELLITE
OPERATION
The satellite radio antenna receives signals from orbiting satellites and sends these signals to the radio. The satellite radio antenna must have open space in which to operate. Items carried on the roof, parking inside etc. can have an effect on the antenna's ability to receive signals.
REMOVAL
1. Disconnect and isolate the battery negative cable.
2. Remover the hard top.

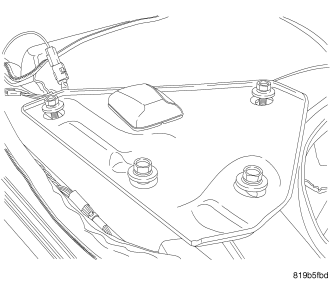

3. Remove the fasteners from mounting plate.
4. Disconnect the antenna connector.
5. Remove the antenna fastener and remove antenna.
INSTALLATION
1. Install the antenna mounting fastener.
2. Connect the antenna connector.
3. Install mounting plate and fasteners
4. Install the hard top.
5. Connect the battery negative cable.
