STRUCTURAL ADHESIVE LOCATIONS
SPECIFICATIONS
DESCRIPTION |
FIGURE |

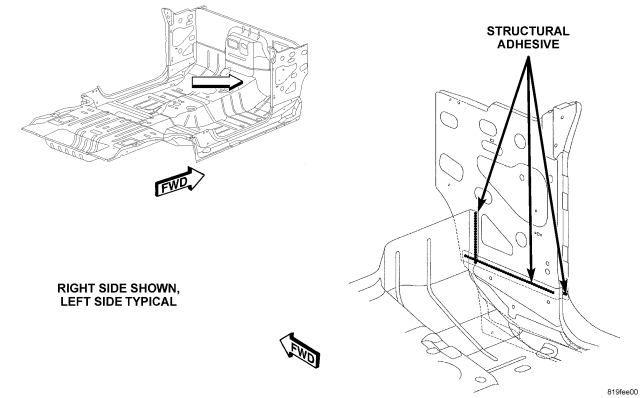

| UNDERBODY/HYDROFORM |

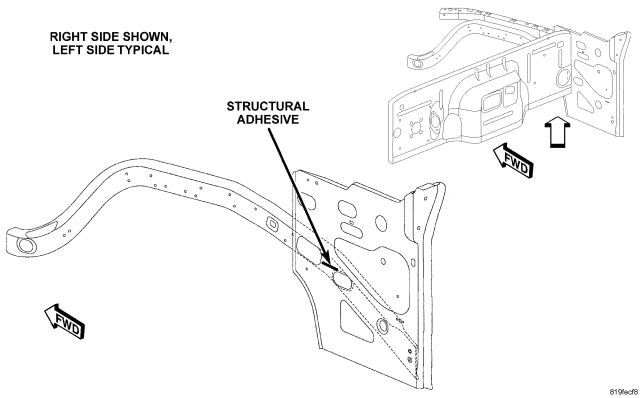

UNDERBODY/HYDROFORM |

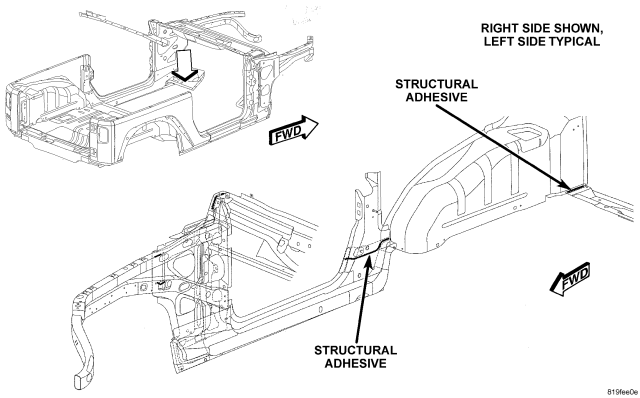

| COWL/DASH/PLENUM JK72 |

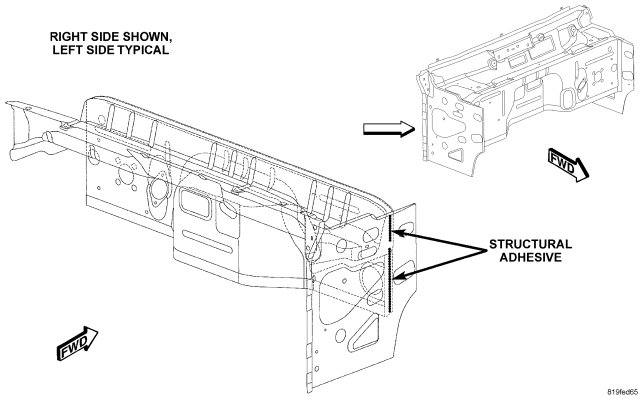

COWL/DASH/PLENUM JK72 |
| LADDER & FLOOR ASSEMBLY JK72 |

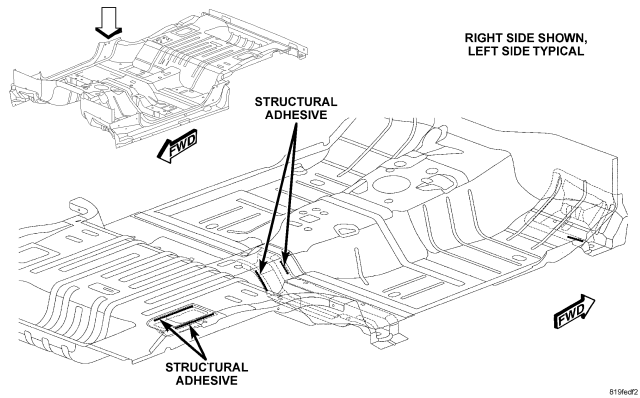

LADDER & FLOOR ASSEMBLY JK72 |
| UNDERBODY COMPLETE JK72 |
UNDERBODY COMPLETE JK72 |
| BODY IN WHITE COMPLETE JK72 |
BODY IN WHITE COMPLETE JK72 |
| COWL/DASH/PLENUM JK74 |

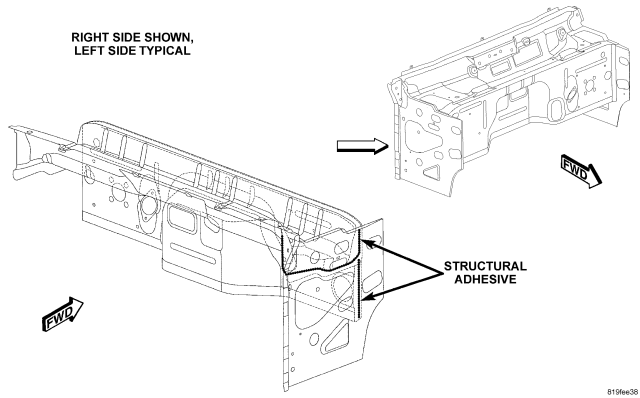

COWL/DASH/PLENUM JK74 |
| LADDER AND FLOOR ASSEMBLY JK74 |

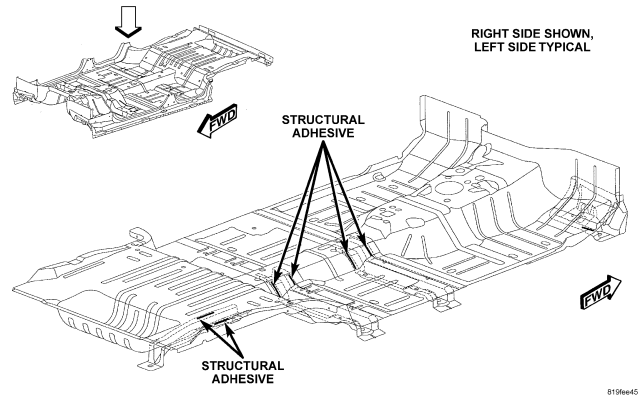

LADDER AND FLOOR ASSEMBLY JK74 |
| UNDERBODY COMPLETE JK74 |

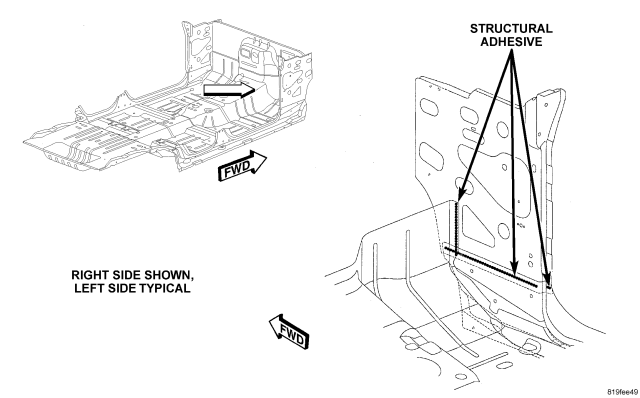

UNDERBODY COMPLETE JK74 |
| BODY IN WHITE COMPLETE (1 OF 2) JK74 |

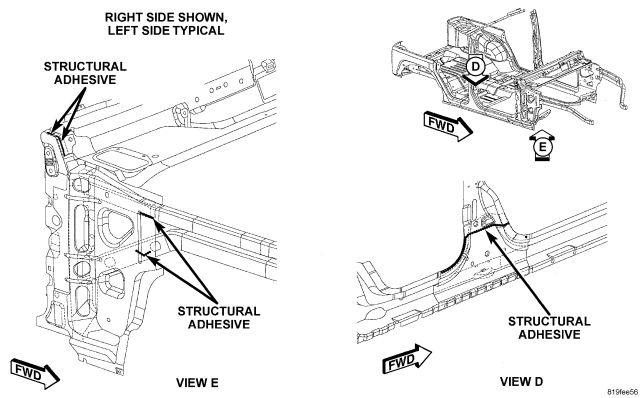

BODY IN WHITE COMPLETE (1 OF 2) JK74 |
| BODY IN WHITE COMPLETE (2 OF 2) JK74 |

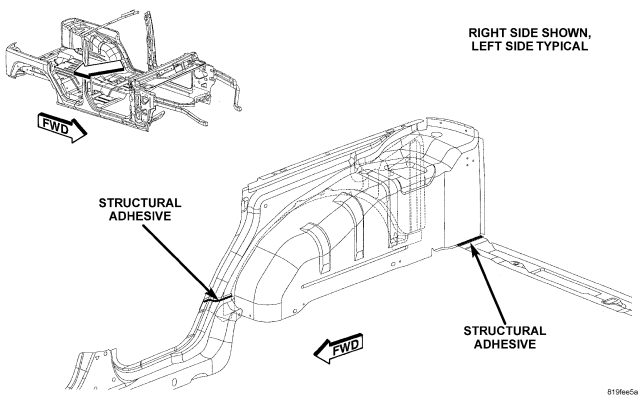

BODY IN WHITE COMPLETE (2 OF 2) JK74 |
| UNDERBODY/HYDROFORM |
| COWL/DASH/PLENUM JK72 |
| LADDER & FLOOR ASSEMBLY JK72 |
| UNDERBODY COMPLETE JK72 |
| BODY IN WHITE COMPLETE JK72 |
| COWL/DASH/PLENUM JK74 |
| LADDER AND FLOOR ASSEMBLY JK74 |
| UNDERBODY COMPLETE JK74 |
| BODY IN WHITE COMPLETE (1 OF 2) JK74 |
| BODY IN WHITE COMPLETE (2 OF 2) JK74 |
