SENSOR - DYNAMICS
DESCRIPTION

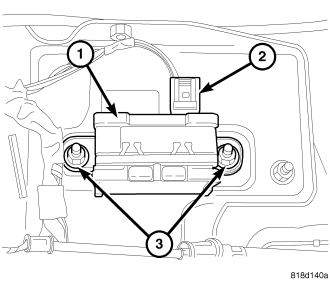

The Yaw Rate and Lateral Acceleration Sensors are housed into one unit known as the Dynamics Sensor (1). The sensor is used to measure side-to-side (Lateral) motion and vehicle rotational sensing (how fast the vehicle is turning - Yaw).
Yaw and Lateral Acceleration Sensors cannot be serviced separately. The entire Dynamics Sensor (1) must be replaced when necessary.
REMOVAL
1. Remove the center console.
2. Disconnect the electrical connector (2) for the sensor (1).
3. Remove the two nuts (3) securing the sensor (1).
4. Remove the sensor (1).
INSTALLATION
1. Install the sensor (1) to the vehicle.
2. Install the two mounting nuts (3).
3. Reconnect the electrical connector (2) to the sensor (1).
4. Install the center console.
