FLUID RESERVOIR
REMOVAL
1. Install prop rod on brake pedal to keep pressure on the brake system.
2. Remove reservoir cap and siphon fluid into drain container.
3. Remove the electrical connector (3) from the fluid level switch in the reservoir (2).

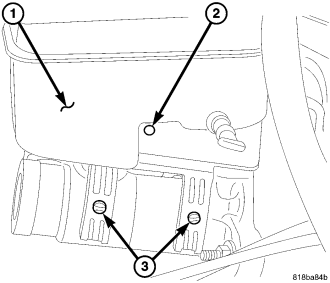

4. Remove the reservoir (1) from the master cylinder by pulling the four tabs (3) outward to release.
5. Remove the reservoir (1) from the master cylinder by pulling upwards.
6. If replacing the reservoir (1) remove the fluid level sensor (2) by squeezing the tabs together while pulling on the sensor (2).

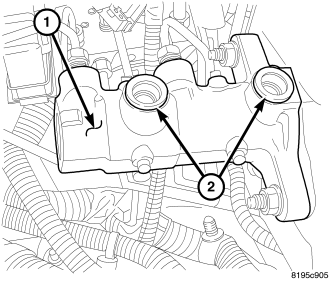

7. Remove old grommets (2) from cylinder body (1).
INSTALLATION
CAUTION: Do not use any type of tool to install the grommets (2). Tools may cut, or tear the grommets creating a leak problem after installation. Install the grommets using finger pressure only and insure that the grommets are properly seated.
1. Lubricate new grommets (2) with clean brake fluid and Install new grommets (2) in cylinder body (1). Use finger pressure to install and seat grommets.
2. Start reservoir (1) in grommets.
3. Then rock reservoir (1) back and forth while pressing downward to seat it in grommets. Make sure the four tabs are securely seated over the nubs (3).
4. Install the fluid level sensor (2) if removed by just inserting the sensor in the reservoir until the tabs click.
5. Reconnect the electrical connector (3) to the fluid reservoir level switch.
6. Remove the prop rod from the vehicle.
7. Fill and bleed base brake system, (Refer to 5 - BRAKES - STANDARD PROCEDURE).
