STEERING WHEEL
REMOVAL
1. Disable and remove the drivers side airbag. (Refer to 8 - ELECTRICAL/RESTRAINTS/DRIVER AIRBAG - REMOVAL).

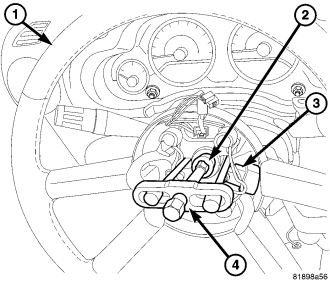

2. Disconnect the speed control wiring (3) to allow access for the puller (4).
3. Partially remove the steering wheel bolt (2) and leave the bolt in the column.
4. Install steering wheel puller special tool L-4407A puller with OTC® 7929A jaws or equivalent (4) using the top of the bolt to push on.
NOTE: Ensure the puller jaws are seated in the pockets of the steering wheel armature.
5. Remove the steering wheel (1).
INSTALLATION
NOTE: Do not reuse the old steering wheel bolt (a new bolt must be used)
1. Install steering wheel to the column
NOTE: Be certain that the steering wheel mounting bolt is tightened to the proper torque specification to ensure proper clockspring operation.
2. Install the new steering wheel bolt. Tighten the bolt to 54 N·m (40 ft. lbs.).
3. Reconnect the speed control electrical wiring.
4. Install the drivers side air bag. (Refer to 8 - ELECTRICAL/RESTRAINTS/DRIVER AIRBAG - INSTALLATION).
