This section provides illustrations identifying connector, ground, and splice locations in the vehicle. Connector, ground, and splice indexes are provided. Use the wiring diagrams in each section
for connector, ground, and splice identification. Refer to the index for the proper figure number. For items that are not shown in this section N/S is placed in the Fig. column.
CONNECTORS
Connector Name/Number
|
Color
|
Location
|
Fig.
|
Actuator-Recirculation Door
|
Black
|
Passenger Side Instrument Panel
|
N/S
|
Airbag–Driver Squib 1
|
Black/Yellow
|
On Steering Wheel
|
N/S
|
Airbag–Driver Squib 2
|
Natural/Yellow
|
On Steering Wheel
|
N/S
|
Airbag–Passenger Squib 1
|
Black/Yellow
|
Passenger Side Instrument Panel
|
N/S
|
Airbag–Passenger Squib 2
|
Lt.Gray/Yellow
|
Passenger Side Instrument Panel
|
N/S
|
Airbag-Seat Squib-Left (Side Airbags)
|
Black/Yellow
|
Left Side of Left Seat
|
N/S
|
Airbag-Seat Squib-Right (Side Airbags)
|
Black/Yellow
|
Right Side of Right Seat
|
N/S
|
Amplifier-Radio C1
|
|
Below Driver Side Instrument Panel
|
N/S
|
Amplifier-Radio C2
|
Black
|
Below Driver Side Instrument Panel
|
N/S
|
Antenna-Global Positioning System (Navigation)
|
Gray
|
Near Antenna
|
N/S
|

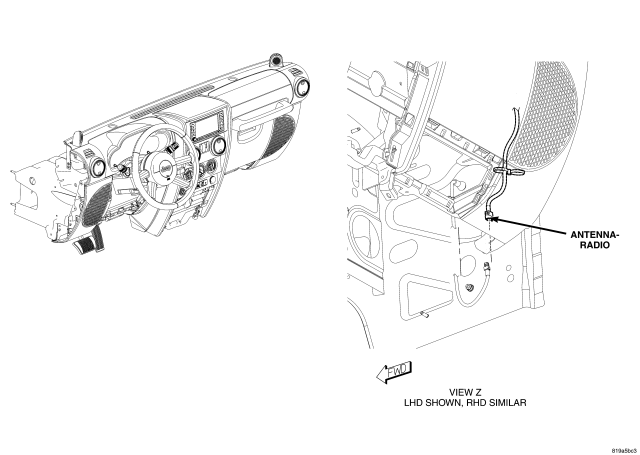

Antenna-Radio
|
Black
|
Right Side Instrument Panel
|
RIGHT SIDE INSTRUMENT PANEL
|

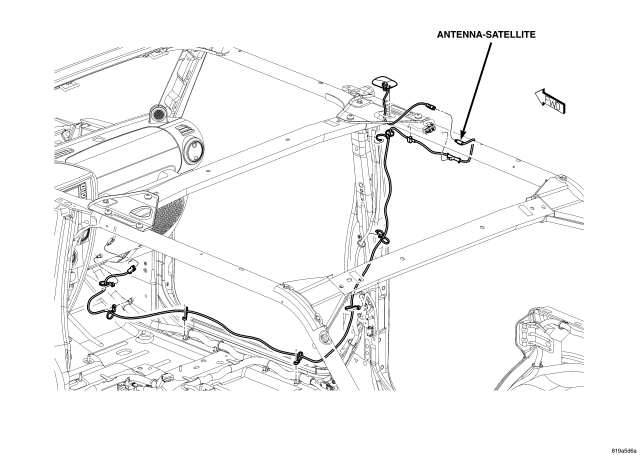

Antenna-Satellite
|
Black
|
Roof Near Right B-Pillar
|
ROOF
|
Assembly-EGR Valve (Gas)
|
Black
|
On Engine
|
N/S
|
Assembly-Glow Plug (Diesel)
|
Black
|
On Engine
|
N/S
|
Assembly-Tail Lamp-Left
|
Dk. Gray
|
Left Rear Body
|
LEFT REAR BODY (4 DOOR), LEFT REAR BODY (2 DOOR)
|

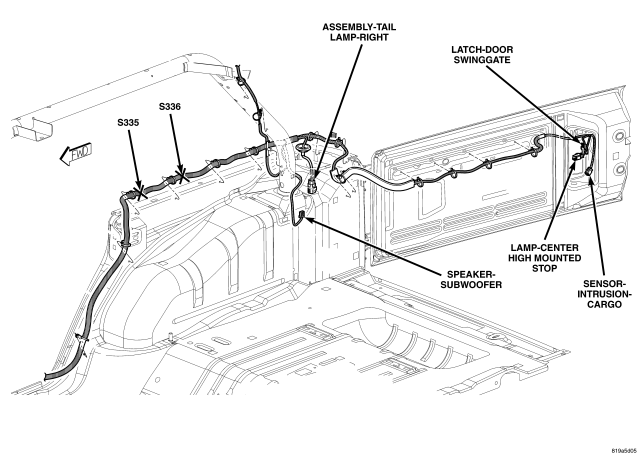

Assembly-Tail Lamp-Right
|
Dk. Gray
|
Right Rear Body
|
REAR BODY AND SWINGGATE
|

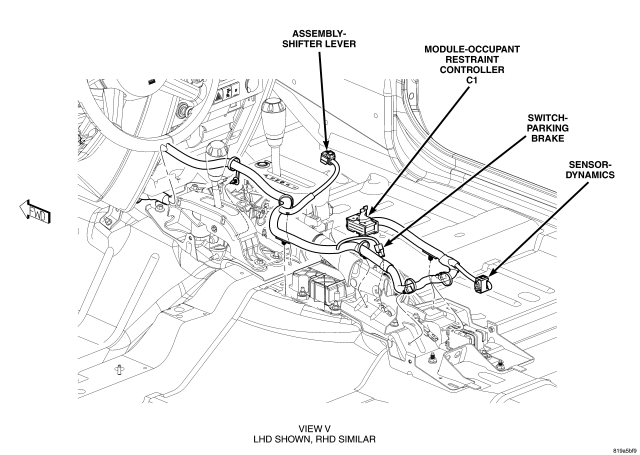

Assembly-Shifter Lever (EATX)
|
Lt.Gray
|
Front Center Body
|
FRONT CENTER BODY
|
Assembly-Transmission Solenoid/Pressure Switch (RLE)
|
Brown
|
On Transmission
|
N/S
|
Assembly-Transmission Solenoid/Trs (RFE)
|
Black
|
On Transmission
|
N/S
|
Assembly-Variable Line Pressure (RLE)
|
Black
|
On Transmission
|
N/S
|
Backlite-Electric Heated (Ground)
|
—
|
On Backlite
|
N/S
|
Backlite-Electric Heated (Power)
|
-
|
On Backlite
|
N/S
|

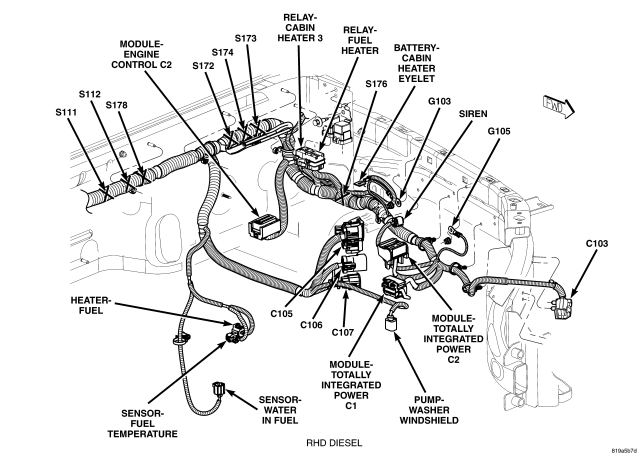

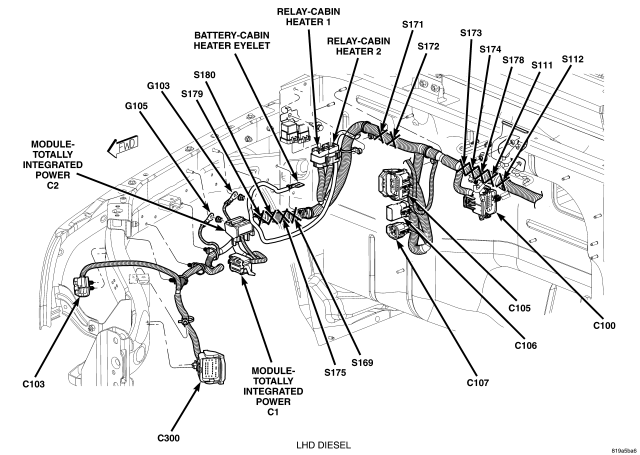

Battery-Cabin Heater-Eyelet (Diesel)
|
-
|
Passenger Side Engine Compartment
|
LEFT ENGINE COMPARTMENT (RHD DIESEL), RIGHT ENGINE COMPARTMENT (LHD DIESEL)
|
Battery-Generator-Eyelet (Gas)
|
-
|
On Battery
|
N/S
|
Battery-Glow Plug-Eyelet (Diesel)
|
-
|
On Battery
|
N/S
|

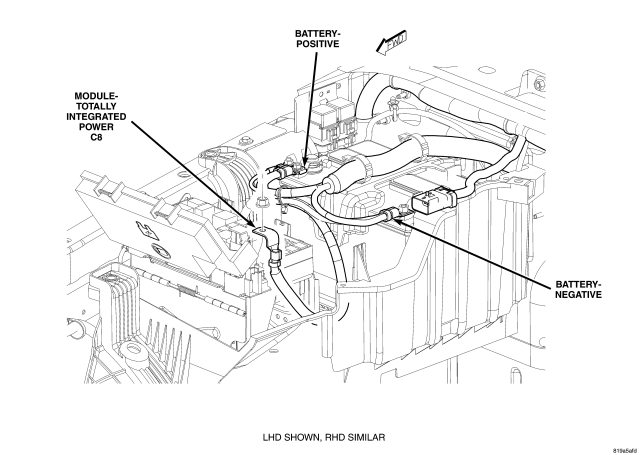

Battery-Negative (Diesel)
|
-
|
At Battery
|
PASSENGER SIDE ENGINE COMPARTMENT
|
Battery-Negative (Gas)
|
-
|
At Battery
|
PASSENGER SIDE ENGINE COMPARTMENT
|
Battery-Negative-Eyelet
|
-
|
On Engine Harness
|
N/S
|
Battery-Positive (Diesel)
|
-
|
At Battery
|
PASSENGER SIDE ENGINE COMPARTMENT
|
Battery-Positive (Gas)
|
-
|
At Battery
|
PASSENGER SIDE ENGINE COMPARTMENT
|

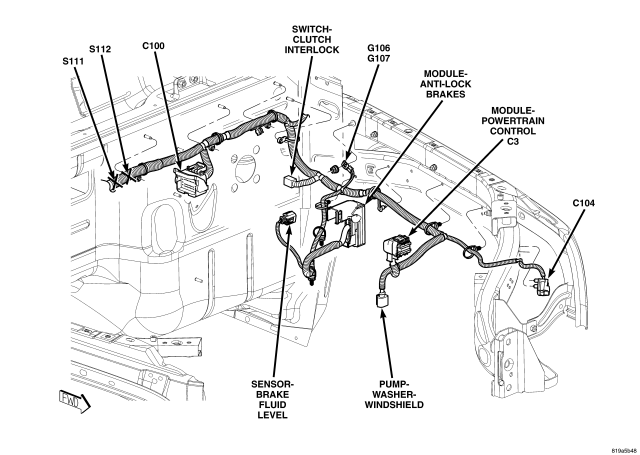

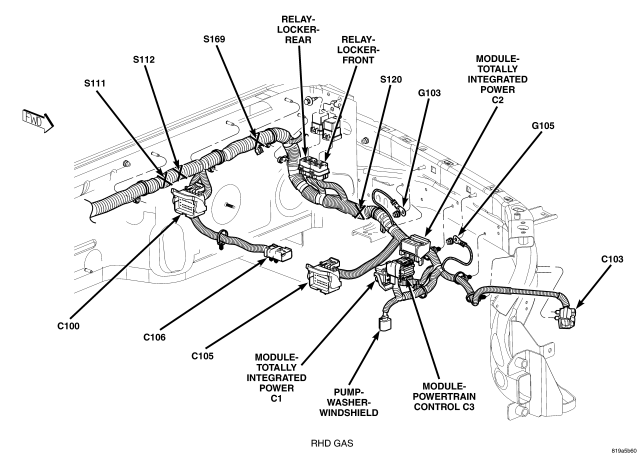

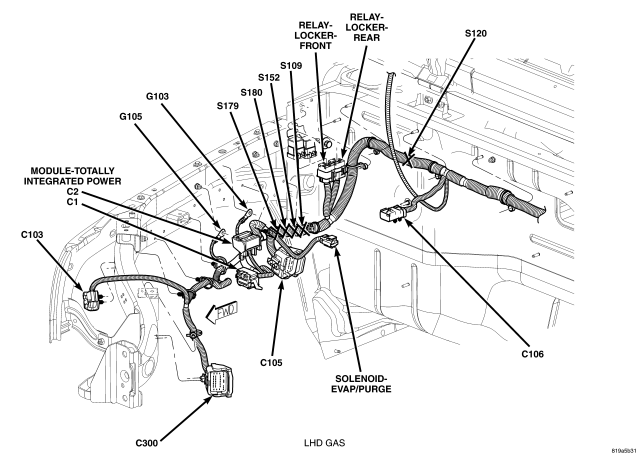

C100
|
Black
|
Rear Engine Compartment
|

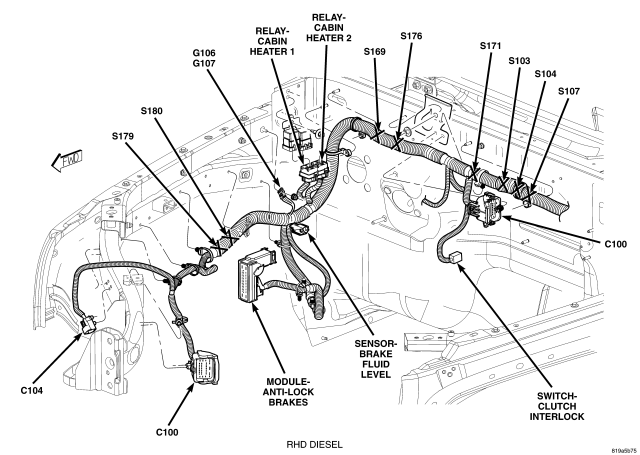

LEFT ENGINE COMPARTMENT (LHD GAS), LEFT ENGINE COMPARTMENT (RHD GAS), RIGHT ENGINE COMPARTMENT (RHD DIESEL), RIGHT ENGINE COMPARTMENT (LHD DIESEL)
|
C101 (Diesel)
|
Dk. Gray
|
Engine Harness to Battery Harness
|
N/S
|
C102 (Gas)
|
Black
|
Engine Harness to Intake Harness
|
N/S
|
C103
|
Black
|
Passenger Side Front Engine Compartment
|
RIGHT ENGINE COMPARTMENT (LHD GAS), LEFT ENGINE COMPARTMENT (RHD GAS), LEFT ENGINE COMPARTMENT (RHD DIESEL), RIGHT ENGINE COMPARTMENT (LHD DIESEL)
|
C104
|
Dk. Gray
|
Driver Side Front Engine Compartment
|

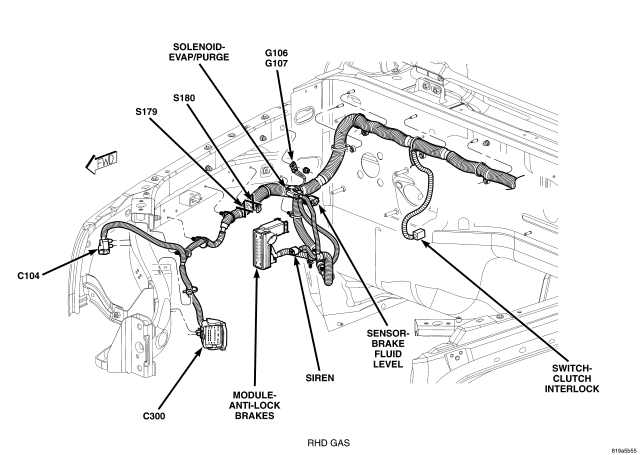

LEFT ENGINE COMPARTMENT (LHD GAS), 6 RIGHT ENGINE COMPARTMENT (RHD GAS), RIGHT ENGINE COMPARTMENT (RHD DIESEL), LEFT ENGINE COMPARTMENT (LHD DIESEL)
|
C105
|
Black
|
Passenger Side Engine Compartment
|
RIGHT ENGINE COMPARTMENT (LHD GAS), LEFT ENGINE COMPARTMENT (RHD GAS), LEFT ENGINE COMPARTMENT (RHD DIESEL), RIGHT ENGINE COMPARTMENT (LHD DIESEL)
|
C106
|
Black
|
Rear Engine Compartment
|
RIGHT ENGINE COMPARTMENT (LHD GAS), LEFT ENGINE COMPARTMENT (RHD GAS), LEFT ENGINE COMPARTMENT (RHD DIESEL), RIGHT ENGINE COMPARTMENT (LHD DIESEL)
|
C107 (Diesel)
|
Dk. Gray
|
Rear Engine Compartment
|
LEFT ENGINE COMPARTMENT (RHD DIESEL), RIGHT ENGINE COMPARTMENT (LHD DIESEL)
|
C108
|
Black
|
Left Front Engine Compartment
|
N/S
|
C109
|
Black
|
Right Front Engine Compartment
|
N/S
|

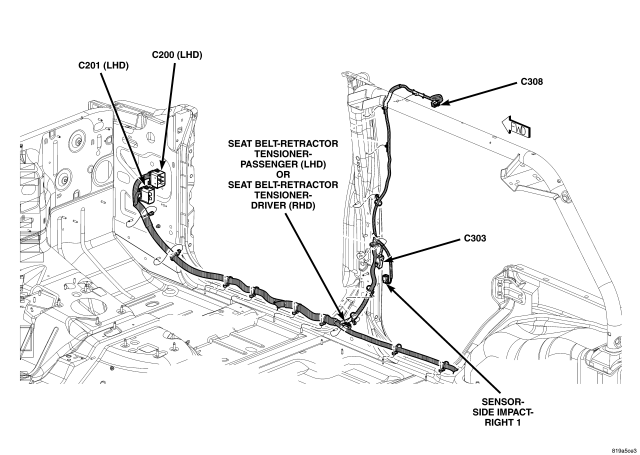

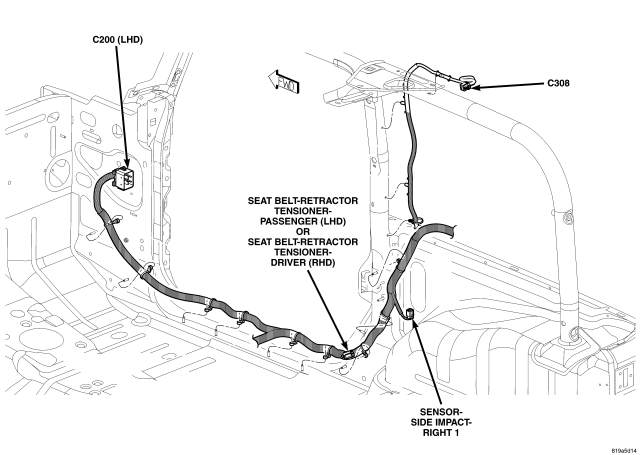

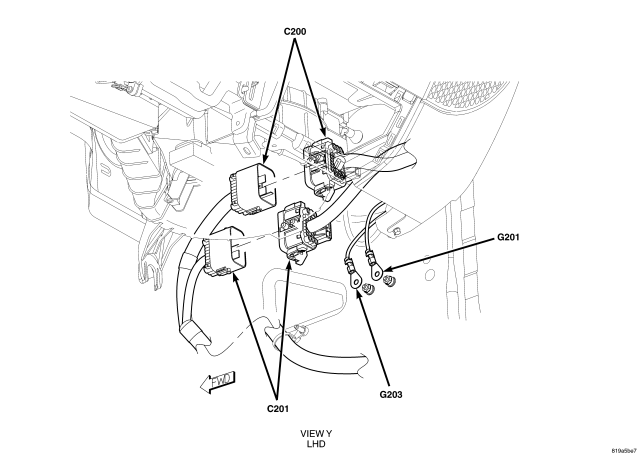

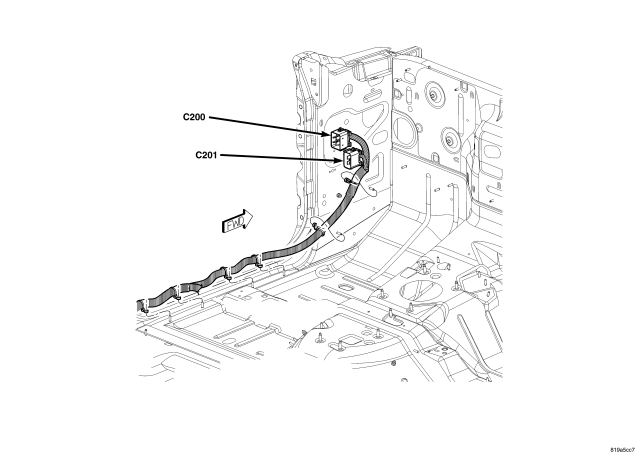

C200
|
Black
|
Passenger Side Instrument Panel
|
LOWER RIGHT INSTRUMENT PANEL, LEFT FRONT BODY (RHD), RIGHT BODY (4 DOOR), RIGHT BODY (2 DOOR)
|
C201 (4 Door Except Base)
|
Black
|
Passenger Side Instrument Panel
|
LOWER RIGHT INSTRUMENT PANEL, LEFT FRONT BODY (RHD), RIGHT BODY (4 DOOR)
|
C202
|
Black
|
Front of Left Front Door
|
DOORS
|
C203
|
Black
|
Front of Right Front Door
|
DOORS
|
C300
|
Black
|
Right Front Engine Compartment
|
RIGHT ENGINE COMPARTMENT (LHD GAS), RIGHT ENGINE COMPARTMENT (RHD DIESEL), RIGHT ENGINE COMPARTMENT (LHD DIESEL)
|

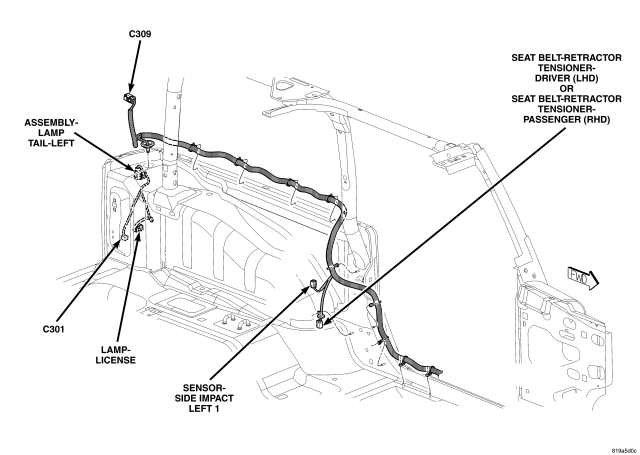

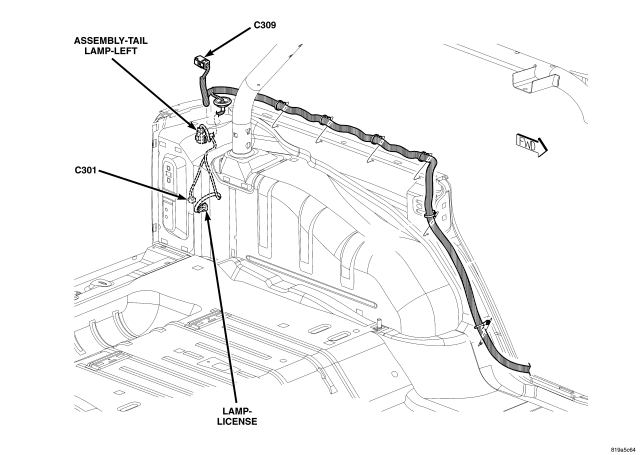

C301 (Export)
|
Dk. Gray
|
Left Rear Body
|
LEFT REAR BODY (4 DOOR), LEFT REAR BODY (2 DOOR)
|

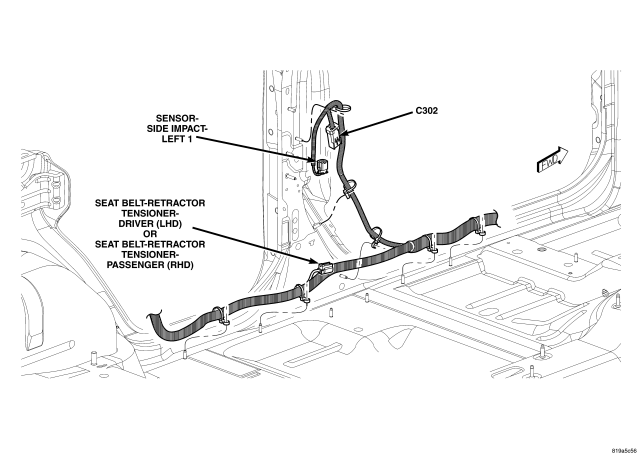

C302 (4 Door)
|
Black
|
Lower Left B-Pillar
|
LEFT BODY, DOORS
|
C303 (4 Door)
|
Black
|
Lower Right B-Pillar
|
RIGHT BODY (4 DOOR), DOORS
|

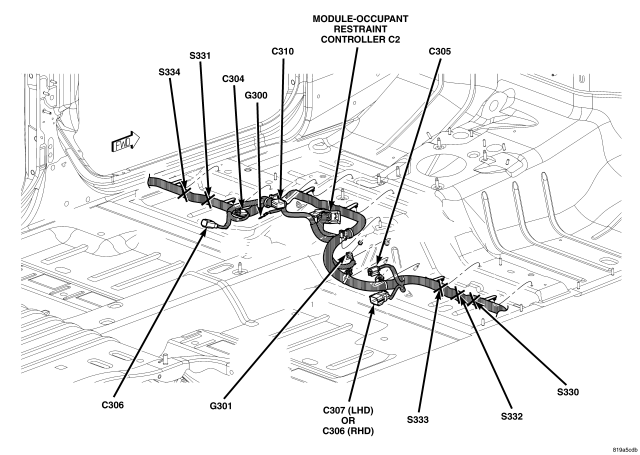

C304 (Side Airbags)
|
Yellow
|
Body Floor Under Left Seat
|
CENTER BODY, DRIVER SEAT TRACK
|
C305 (Side Airbags)
|
Yellow
|
Body Floor Under Right Seat
|
CENTER BODY, PASSENGER SEAT TRACK
|

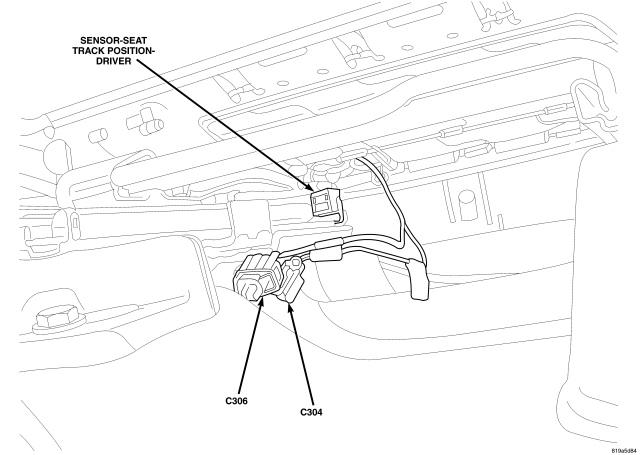

C306 (Except Export)
|
Dk. Gray
|
Body Floor Under Left Seat
|
CENTER BODY, DRIVER SEAT TRACK
|
C306 (Export)
|
Black
|
Body Floor Under Right Seat
|
CENTER BODY
|
C307 (Except Export)
|
Dk. Gray
|
Body Floor Under Right Seat
|
CENTER BODY, PASSENGER SEAT TRACK
|
C308
|
Lt. Gray
|
Roof Near Right B-Pillar
|
RIGHT BODY (4 DOOR), RIGHT BODY (2 DOOR)
|
C309 (Hard Top)
|
Black
|
Left Rear Body
|
LEFT REAR BODY (4 DOOR), LEFT REAR BODY (2 DOOR)
|
C310 (4 Door Except Base)
|
Lt. Gray
|
Body Floor Between Front Seats
|
CENTER BODY
|
C311 (Trailer Tow)
|
Dk. Gray
|
On Trailer Tow Harness
|
N/S
|
Cluster C1
|
Black
|
Driver Side Instrument Panel
|
N/S
|
Cluster C2
|
Brown
|
Driver Side Instrument Panel
|
N/S
|
Cluster C3
|
Black
|
Driver Side Instrument Panel
|
N/S
|
Clutch-A/C Compressor
|
Black
|
On Engine
|
N/S
|
Coil-Ignition (Gas)
|
Dk. Gray
|
on Engine
|
N/S
|
Control-A/C-Heater C1
|
Black
|
Center Instrument Panel
|
N/S
|
Control-A/C-Heater C2
|
Black
|
Center Instrument Panel
|
N/S
|
Data Link Connector
|
Black
|
Lower Driver Side Instrument Panel
|
N/S
|
Fan Module-Radiator Cooling
|
Dk. Gray
|
Front Engine Compartment
|
N/S
|
Generator (Diesel)
|
-
|
On Engine
|
N/S
|
Generator (Gas)
|
Black
|
On Engine
|
N/S
|
Generator-Eyelet (Diesel)
|
-
|
At Generator
|
N/S
|
Generator-Eyelet (Gas)
|
-
|
At Generator
|
N/S
|
Heater-Cabin (Diesel)
|
Black
|
Lower Left Instrument Panel
|
N/S
|
Heater-Crankcase Vent (Diesel)
|
Black
|
On Engine
|
N/S
|

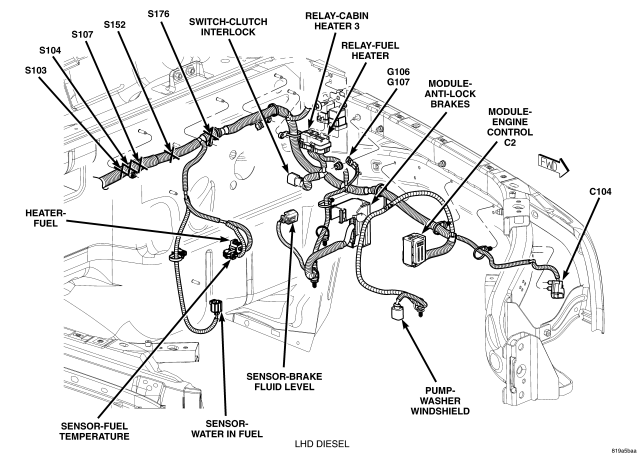

Heater-Fuel (Diesel)
|
Black
|
Left Rear Engine
|
LEFT ENGINE COMPARTMENT (RHD DIESEL), LEFT ENGINE COMPARTMENT (LHD DIESEL)
|
Horn C1
|
Black
|
Right Front Engine Compartment
|
N/S
|
Horn C2
|
Black
|
Right Front Engine Compartment
|
N/S
|
Injector-Fuel 1 (Diesel)
|
Black
|
On Engine
|
N/S
|
Injector-Fuel 1 (Gas)
|
Black
|
On Engine
|
N/S
|
Injector-Fuel 2 (Diesel)
|
Black
|
On Engine
|
N/S
|
Injector-Fuel 2 (Gas)
|
Black
|
On Engine
|
N/S
|
Injector-Fuel 3 (Diesel)
|
Black
|
On Engine
|
N/S
|
Injector-Fuel 3 (Gas)
|
Black
|
On Engine
|
N/S
|
Injector-Fuel 4 (Diesel)
|
Black
|
On Engine
|
N/S
|
Injector-Fuel 4 (Gas)
|
Black
|
On Engine
|
N/S
|
Injector-Fuel 5 (Gas)
|
Black
|
On Engine
|
N/S
|
Injector-Fuel 6 (Gas)
|
Black
|
On Engine
|
N/S
|

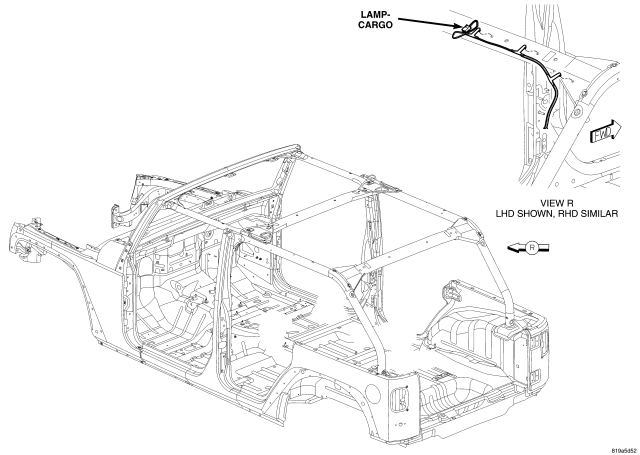

Lamp-Cargo (4 Door)
|
Black
|
Center Rear Roof
|
TOP REAR BODY
|
Lamp-Center High Mounted Stop
|
Lt. Gray
|
Left Side of Swinggate
|
REAR BODY AND SWINGGATE
|
Lamp-Courtesy-Driver
|
Black
|
Below Driver Side Instrument Panel
|
N/S
|
Lamp-Dome
|
Black
|
Center of Sport Bar
|
N/S
|
Lamp-Fog-Left Front
|
Black
|
Lower Left Front Fascia
|
N/S
|
Lamp-Fog-Left Rear (Export)
|
Gray
|
Lower Left Rear Fascia
|
N/S
|
Lamp-Fog-Right Front
|
Black
|
Lower Right Front Fascia
|
N/S
|
Lamp-Fog-Right Rear (Export)
|
Gray
|
Lower Right Rear Fascia
|
N/S
|
Lamp-Headlamp-Left (Except Export)
|
Green
|
Left Front Engine Compartment
|
N/S
|
Lamp-Headlamp-Left (Export)
|
Black
|
Left Front Engine Compartment
|
N/S
|
Lamp-Headlamp-Right (Except Export)
|
Green
|
Right Front Engine Compartment
|
N/S
|
Lamp-Headlamp-Right (Export)
|
Black
|
Right Front Engine Compartment
|
N/S
|
Lamp-License (Except Export)
|
Black
|
Left Rear Body
|
LEFT REAR BODY (4 DOOR), LEFT REAR BODY (2 DOOR)
|
Lamp-License (Export)
|
Black
|
Center of Rear Fascia
|
N/S
|
Lamp-Park/Turn-Left Front (Except Export)
|
Black
|
Left Front Engine Component
|
N/S
|
Lamp-Park/Turn-Right Front (Except Export)
|
Black
|
Right Front Engine Component
|
N/S
|
Lamp-Park-Left Front (Export)
|
Black
|
Left Front Engine Component
|
N/S
|
Lamp-Park-Right Front (Export)
|
Black
|
Right Front Engine Component
|
N/S
|
Lamp-Side Marker-Left Front (Except Export)
|
Gray
|
Left Side Engine Component
|
N/S
|
Lamp-Side Marker-Right Front (Except Export)
|
Gray
|
Right Side Engine Component
|
N/S
|
Lamp-Side Repeater-Left (Export)
|
Gray
|
Left Side Engine Component
|
N/S
|
Lamp-Side Repeater-Right (Export)
|
Gray
|
Right Side Engine Component
|
N/S
|
Lamp-Turn-Left Front (Export)
|
-
|
Left Front Engine Component
|
N/S
|
Lamp-Turn-Right Front (Export)
|
-
|
Right Front Engine Component
|
N/S
|

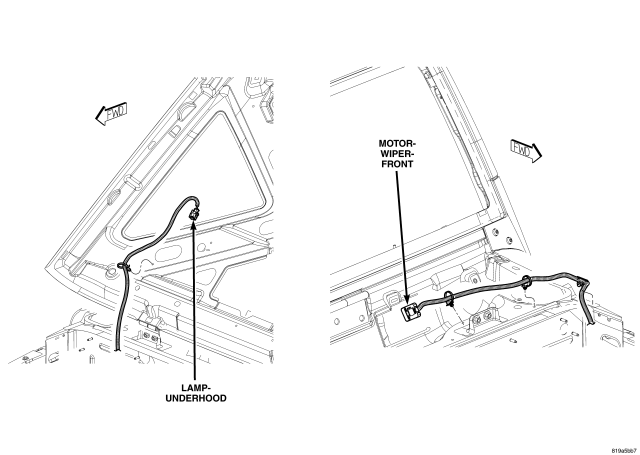

Lamp-Underhood
|
Black
|
Rear Center Hood
|
REAR ENGINE COMPARTMENT
|

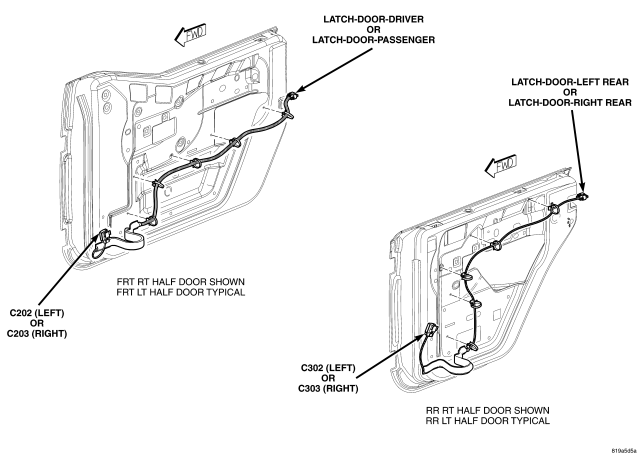

Latch-Door-Driver
|
Black
|
Rear of Driver Door
|
DOORS
|
Latch-Door-Left Rear (4 Door)
|
Black
|
Rear of Left Rear Door
|
DOORS
|
Latch-Door-Passenger
|
Black
|
Rear of Passenger Door
|
DOORS
|
Latch-Door-Right Rear (4 Door)
|
Black
|
Rear of Right Rear Door
|
DOORS
|
Latch-Door-Swinggate
|
Black
|
Left Side of Swinggate
|
REAR BODY AND SWINGGATE
|
Lighter-Cigar
|
Gray
|
Center Instrument Panel
|
N/S
|
Module-Anti-Lock Brakes (ESP)
|
Black
|
Driver Side Engine Compartment
|
LEFT ENGINE COMPARTMENT (LHD GAS), 6 RIGHT ENGINE COMPARTMENT (RHD GAS), LEFT ENGINE COMPARTMENT (LHD DIESEL)
|
Module-Automatic Sway Bar System (ASBS)
|
-
|
On Stabilizer Bar
|
N/S
|
Module-Compass
|
Black
|
Center Instrument Panel
|
N/S
|
Module-Engine Control C1 (Diesel)
|
-
|
Engine Compartment
|
N/S
|
Module-Engine Control C2 (Diesel)
|
-
|
Left Side Engine Compartment
|
LEFT ENGINE COMPARTMENT (RHD DIESEL), LEFT ENGINE COMPARTMENT (LHD DIESEL)
|
Module-Fuel Pump
|
Lt. Gray
|
At Fuel Tank
|
N/S
|
Module-Glow Plug (Diesel)
|
Black
|
Engine Compartment
|
N/S
|
Module-Headlamp Leveling-Left (Export)
|
-
|
Left Front Engine Compartment
|
N/S
|
Module-Headlamp Leveling-Right (Export)
|
-
|
Right Front Engine Compartment
|
N/S
|
Module-Intrusion Transceiver (RHD)
|
Black
|
Below Driver Side Instrument Panel
|
N/S
|

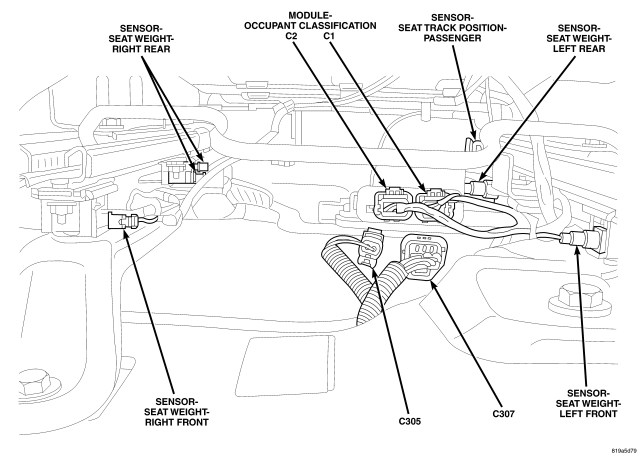

Module-Occupant Classification C1 (Except Export)
|
-
|
Under Front Passenger Seat
|
PASSENGER SEAT TRACK
|
Module-Occupant Classification C2 (Except Export)
|
-
|
Under Front Passenger Seat
|
PASSENGER SEAT TRACK
|
Module-Occupant Restraint Controller C1 (ORC)
|
Yellow
|
Front Center Body
|
FRONT CENTER BODY
|
Module-Occupant Restraint Controller C2 (ORC)
|
Yellow
|
Center Body Floor
|
CENTER BODY
|

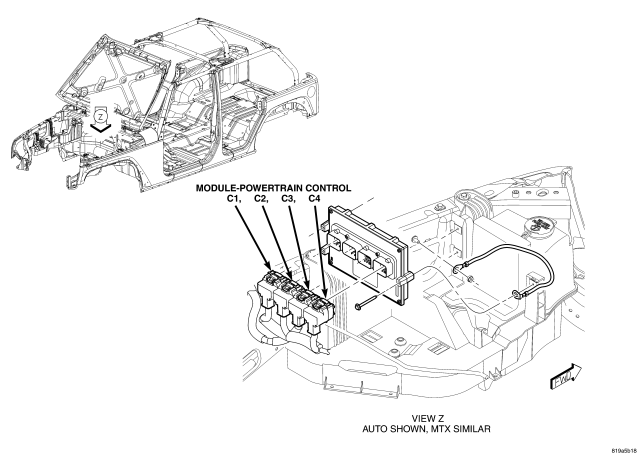

Module-Powertrain Control C1 (Gas)
|
Black/Black
|
Left Side Engine Compartment
|
POWERTRAIN CONTROL MODULE
|
Module-Powertrain Control C1 (Diesel)
|
Black/Black
|
Left Side Engine Compartment
|
N/A
|
Module-Powertrain Control C2 (Gas)
|
Black/Orange
|
Left Side Engine Compartment
|
POWERTRAIN CONTROL MODULE
|
Module-Powertrain Control C3 (Gas)
|
Black/Natural
|
Left Side Engine Compartment
|
POWERTRAIN CONTROL MODULE, LEFT ENGINE COMPARTMENT (LHD GAS), LEFT ENGINE COMPARTMENT (RHD GAS)
|
Module-Powertrain Control C4 (RLE)
|
Black/Green
|
Left Side Engine Compartment
|
POWERTRAIN CONTROL MODULE
|
Module-Powertrain Control C4 (Diesel)(RFE)
|
Black/Green
|
Left Side Engine Compartment
|
N/A
|
Module-Sentry Key Remote Entry/WCM
|
Black
|
Steering Column
|
N/S
|
Module-Steering Control C1
|
-
|
Steering Column
|
N/S
|
Module-Steering Control C2
|
Natural
|
Steering Column
|
N/S
|
Module-Steering Control C4
|
White
|
Steering Column
|
N/S
|
Module-Steering Control C5
|
White
|
On Steering Wheel
|
N/S
|

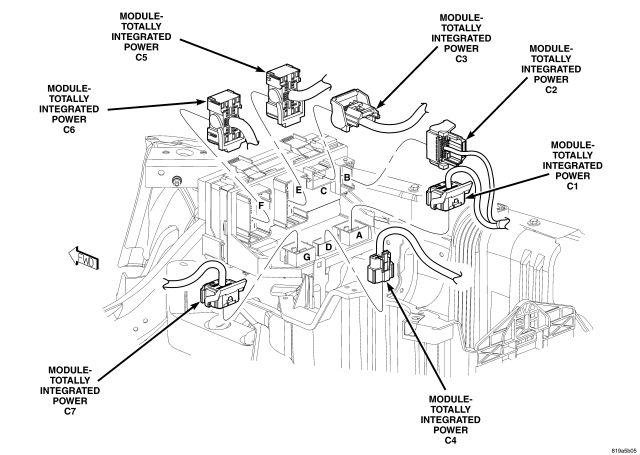

Module-Totally Integrated Power C1
|
Black
|
Passenger Side Engine Compartment
|
TOTALLY INTEGRATED POWER MODULE, RIGHT ENGINE COMPARTMENT (LHD GAS), LEFT ENGINE COMPARTMENT (RHD GAS), LEFT ENGINE COMPARTMENT (RHD DIESEL), RIGHT ENGINE COMPARTMENT (LHD DIESEL)
|
Module-Totally Integrated Power C2
|
BLue
|
Passenger Side Engine Compartment
|
TOTALLY INTEGRATED POWER MODULE, RIGHT ENGINE COMPARTMENT (LHD GAS), LEFT ENGINE COMPARTMENT (RHD GAS), LEFT ENGINE COMPARTMENT (RHD DIESEL), RIGHT ENGINE COMPARTMENT (LHD DIESEL)
|
Module-Totally Integrated Power C3
|
Green
|
Passenger Side Engine Compartment
|
TOTALLY INTEGRATED POWER MODULE
|
Module-Totally Integrated Power C4
|
Lt. Gray
|
Passenger Side Engine Compartment
|
TOTALLY INTEGRATED POWER MODULE
|
Module-Totally Integrated Power C5
|
Brown
|
Passenger Side Engine Compartment
|
TOTALLY INTEGRATED POWER MODULE
|
Module-Totally Integrated Power C6
|
Gray
|
Passenger Side Engine Compartment
|
TOTALLY INTEGRATED POWER MODULE
|
Module-Totally Integrated Power C7
|
-
|
Passenger Side Engine Compartment
|
TOTALLY INTEGRATED POWER MODULE
|
Module-Totally Integrated Power C8
|
-
|
Passenger Side Engine Compartment
|
PASSENGER SIDE ENGINE COMPARTMENT
|
Motor-Blower
|
Natural
|
Passenger Side Instrument Panel
|
N/S
|
Motor-Boost Pressure Servo (Diesel)
|
Natural
|
On Engine
|
N/S
|
Motor-Window-Left Front
|
Lt. Gray
|
On Left Front Door
|
N/S
|
Motor-Window-Left Rear (4 Door)
|
Lt. Gray
|
Left Rear Door
|
N/S
|
Motor-Window-Right Front
|
Lt. Gray
|
On Right Front Door
|
N/S
|
Motor-Window-Right Rear (4 Door)
|
Lt. Gray
|
Right Rear Door
|
N/S
|
Motor-Wiper-Front
|
Black
|
Left Rear Engine Compartment
|
REAR ENGINE COMPARTMENT
|
Motor-Wiper-Rear (Hard Top)
|
Black
|
Rear Roof
|
N/S
|
Power Outlet-Console
|
Gray
|
Center Instrument Panel
|
N/S
|
Pump-Washer-Windshield
|
Black
|
Left Front Engine Compartment
|
LEFT ENGINE COMPARTMENT (LHD GAS), LEFT ENGINE COMPARTMENT (RHD GAS), LEFT ENGINE COMPARTMENT (RHD DIESEL), LEFT ENGINE COMPARTMENT (LHD DIESEL)
|
Radio
|
Gray
|
Center Instrument Panel
|
N/S
|
Relay-Cabin Heater 1 (Diesel)
|
Lt. Gray
|
Right Rear Engine Compartment
|
RIGHT ENGINE COMPARTMENT (RHD DIESEL), RIGHT ENGINE COMPARTMENT (LHD DIESEL)
|
Relay-Cabin Heater 2 (Diesel)
|
Lt. Gray
|
Right Rear Engine Compartment
|
RIGHT ENGINE COMPARTMENT (RHD DIESEL), RIGHT ENGINE COMPARTMENT (LHD DIESEL)
|
Relay-Cabin Heater 3 (Diesel)
|
Lt. Gray
|
Left Rear Engine Compartment
|
LEFT ENGINE COMPARTMENT (RHD DIESEL), LEFT ENGINE COMPARTMENT (LHD DIESEL)
|
Relay-Fuel Heater (Diesel)
|
-
|
Left Rear Engine Compartment
|
LEFT ENGINE COMPARTMENT (RHD DIESEL), LEFT ENGINE COMPARTMENT (LHD DIESEL)
|

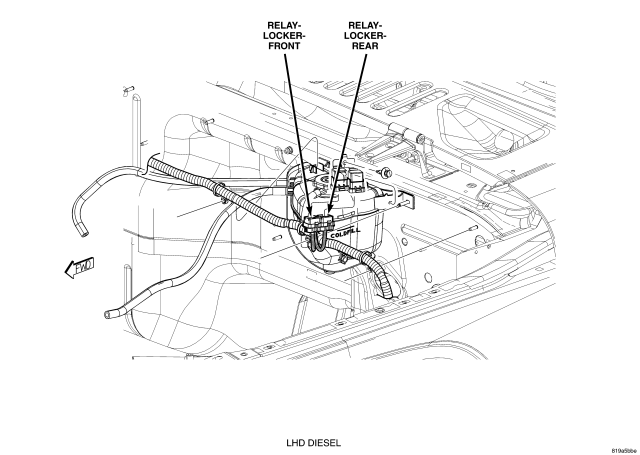

Relay-Locker-Front (Off-Raod)
|
-
|
Passenger Side Rear Engine Compartment
|
RIGHT ENGINE COMPARTMENT (LHD GAS), LEFT ENGINE COMPARTMENT (RHD GAS), LEFT REAR ENGINE COMPARTMENT (LHD DIESEL)
|
Relay-Locker-Rear (Off-Raod)
|
-
|
Passenger Side Rear Engine Compartment
|
RIGHT ENGINE COMPARTMENT (LHD GAS), LEFT ENGINE COMPARTMENT (RHD GAS), LEFT REAR ENGINE COMPARTMENT (LHD DIESEL)
|
Relay-Radiator Fan High
|
Lt. Gray
|
Left Front Engine Compartment
|
N/S
|
Resistor Block-Blower Motor
|
Gray
|
Passenger Side Instrument Panel
|
N/S
|
Seat Belt-Retractor Tensioner-Driver
|
Yellow
|
Driver Side Body at Base of B-Piller
|
LEFT BODY, RIGHT BODY (4 DOOR), LEFT REAR BODY (2 DOOR), RIGHT BODY (2 DOOR)
|
Seat Belt-Retractor Tensioner-Passenger
|
Yellow
|
Passenger Side Body at Base of B-Piller
|
LEFT BODY, RIGHT BODY (4 DOOR), LEFT REAR BODY (2 DOOR), RIGHT BODY (2 DOOR)
|
Sensor-Accelerator Pedal Position
|
Black
|
At Base fo Pedal
|
N/S
|
Sensor-Ambient Air Temperature
|
Black
|
Center Front Engine Compartment
|
N/S
|
Sensor-Brake Fluid Level
|
Black
|
Driver Side Engine Compartment
|
LEFT ENGINE COMPARTMENT (LHD GAS), 6 RIGHT ENGINE COMPARTMENT (RHD GAS), LEFT ENGINE COMPARTMENT (LHD DIESEL)
|
Sensor-Camshaft Position (Diesel)
|
Black
|
On Engine
|
N/S
|
Sensor-Camshaft Position (Gas)
|
Black
|
On Engine
|
N/S
|
Sensor-Crankshaft Position (Diesel)
|
Black
|
On Engine
|
N/S
|
Sensor-Crankshaft Position (Gas)
|
Black
|
On Engine
|
N/S
|
Sensor-Dynamics (ESP)
|
Black
|
Front Center Body
|
FRONT CENTER BODY
|
Sensor-Engine Coolant Temperature (Diesel)
|
Black
|
On Engine
|
N/S
|
Sensor-Engine Coolant Temperature (Gas)
|
Black
|
On Engine
|
N/S
|
Sensor-Evaporator Temperature
|
Natural
|
Below Driver Side Instrument Panel
|
N/S
|
Sensor-Exhaust Differential Pressure (Diesel)
|
Black
|
Rear of Engine
|
N/S
|
Sensor-Front Impact-Left
|
Yellow
|
Left Front Engine Compartment
|
N/S
|
Sensor-Front Impact-Right
|
Yellow
|
Right Front Engine Compartment
|
N/S
|
Sensor-Fuel Pressure (Diesel)
|
Black
|
On Engine
|
N/S
|
Sensor-Fuel Temperature (Diesel)
|
Black
|
Left Rear Engine
|
LEFT ENGINE COMPARTMENT (RHD DIESEL), LEFT ENGINE COMPARTMENT (LHD DIESEL)
|
Sensor-Inlet Air Pressure (Diesel)
|
Black
|
On Engine
|
N/S
|
Sensor-Input Speed (ETAX)
|
Black
|
On Transmission
|
N/S
|
Sensor-Intake Air Temperature (Gas)
|
Black
|
On Engine
|
N/S
|
Sensor-Intake Air Temperature/Boost Pressure (Diesel)
|
Black
|
On Engine
|
N/S
|
Sensor-Intrusion-Cargo (RHD)
|
Black
|
Left Side of Swinggate
|
REAR BODY AND SWINGGATE
|
Sensor-Intrusion-Console (RHD)
|
Black
|
Center Body Floor
|
N/S
|
Sensor-Intrusion-Front (RHD)
|
Black
|
Front of Shift Lever
|
N/S
|
Sensor-Knock (Gas)
|
Black
|
On Engine
|
N/S
|
Sensor-Line Pressure (RFE)
|
Black
|
On Transmission
|
N/S
|
Sensor-Map (Gas)
|
Gray
|
On Engine
|
N/S
|
Sensor-Mass Air Flow (Diesel)
|
-
|
On Engine
|
N/S
|
Sensor-Oil Pressure (Diesel)
|
Dk. Green
|
On Engine
|
N/S
|
Sensor-Output Speed (EATX)
|
Black
|
On Transmission
|
N/S
|
Sensor-Oxygen (Diesel)
|
-
|
|
N/S
|
Sensor-Oxygen 1/1 (Gas)
|
Natural
|
Rear of Engine
|
N/S
|
Sensor-Oxygen 1/2 (Gas)
|
Black
|
Rear of Engine
|
N/S
|
Sensor-Oxygen 2/1 (Gas LHD)
|
Gray
|
Rear of Engine
|
N/S
|
Sensor-Oxygen 2/1 (Gas RHD)
|
Black
|
Rear of Engine
|
N/S
|
Sensor-Oxygen 2/2 (Gas)
|
Black
|
Rear of Engine
|
N/S
|
Sensor-Post-Catalyst Exhaust Gas Temperature (Diesel)
|
-
|
Rear of Engine
|
N/S
|
Sensor-Seat Track Position-Driver (Except Export)
|
Gray
|
Under Driver Seat
|
DRIVER SEAT TRACK
|
Sensor-Seat Track Position-Passenger (Except Export)
|
Gray
|
Under Passenger Seat
|
PASSENGER SEAT TRACK
|
Sensor-Seat Weight-Left Front (Except Export)
|
-
|
Under Left Front Passenger Seat
|
PASSENGER SEAT TRACK
|
Sensor-Seat Weight-Left Rear (Except Export)
|
-
|
Under Left Rear Passenger Seat
|
PASSENGER SEAT TRACK
|
Sensor-Seat Weight-Right Front (Except Export)
|
-
|
Under Left Front Passenger Seat
|
PASSENGER SEAT TRACK
|
Sensor-Seat Weight-Right Rear (Except Export)
|
-
|
Under Left Rear Passenger Seat
|
PASSENGER SEAT TRACK
|
Sensor-Side Impact-Left 1 (Side Airbags)
|
Yellow
|
Lower Left B-Pillar
|
LEFT BODY, LEFT REAR BODY (2 DOOR)
|
Sensor-Side Impact-Right 1 (Side Airbags)
|
Yellow
|
Lower Right B-Pillar
|
RIGHT BODY (4 DOOR), RIGHT BODY (2 DOOR)
|
Sensor-Steering Angle (ESP)
|
-
|
Steering Column
|
N/S
|
Sensor-Transmission Range (RLE)
|
Lt. Green
|
On Transmission
|
N/S
|
Sensor-Water in Fuel (Diesel)
|
Green
|
Left Rear Engine
|
LEFT ENGINE COMPARTMENT (RHD DIESEL), LEFT ENGINE COMPARTMENT (LHD DIESEL)
|
Sensor-Wheel Speed-ABS-Left Front
|
Black
|
Near Left Front Wheel
|
N/S
|
Sensor-Wheel Speed-ABS-Left Rear
|
Black
|
Near Left Rear Wheel
|
N/S
|
Sensor-Wheel Speed-ABS-Right Front
|
Black
|
Near Right Front Wheel
|
N/S
|
Sensor-Wheel Speed-ABS-Right Rear
|
Black
|
Near Right Rear Wheel
|
N/S
|
Siren (RHD)
|
Black
|
Left Engine Compartment
|
LEFT ENGINE COMPARTMENT (RHD DIESEL)
|
Solenoid-EGR (Diesel)
|
-
|
On Engine
|
N/S
|
Solenoid-Evap/Purge (Gas)
|
Black
|
Right Rear Engine Compartment
|
RIGHT ENGINE COMPARTMENT (LHD GAS), 6 RIGHT ENGINE COMPARTMENT (RHD GAS)
|
Solenoid-Fuel Pressure (Diesel)
|
Black
|
On Engine
|
N/S
|
Solenoid-Fuel Quantity (Diesel)
|
Black
|
On Engine
|
N/S
|
Solenoid-Locker-Front (Off Road)
|
Black
|
At Front Differential
|
N/S
|
Solenoid-Locker-Rear (Off Road)
|
Black
|
At Rear Differential
|
N/S
|
Solenoid-Throttle Valve (Diesel)
|
Black
|
On Engine
|
N/S
|
Speaker-Instrument Panel-Left
|
Lt. Gray
|
Left Instrument Panel
|
N/S
|
Speaker-Instrument Panel-Right
|
Lt. Gray
|
Right Instrument Panel
|
N/S
|
Speaker-Left Front
|
Black
|
Left Instrument Panel
|
N/S
|
Speaker-Left Rear
|
White
|
Left of Sport Bar
|
N/S
|
Speaker-Right Front
|
Black
|
Right Instrument Panel
|
N/S
|
Speaker-Right Rear
|
White
|
Right of Sport Bar
|
N/S
|
Speaker-Subwoofer (Premium)
|
Black
|
Right Rear Body
|
REAR BODY AND SWINGGATE
|
Starter
|
-
|
On Engine
|
N/S
|
Starter-Eyelet (Diesel)
|
-
|
At Starter
|
N/S
|
Starter-Eyelet (Gas)
|
-
|
At Starter
|
N/S
|
Switch-Backup Lamp (MTX)
|
Black
|
On Transmission
|
N/S
|
Switch-Bank
|
Black
|
Center Instrument Panel
|
N/S
|
Switch-Clutch Interlock (MTX)
|
-
|
Rear Engine Component
|
LEFT ENGINE COMPARTMENT (LHD GAS), 6 RIGHT ENGINE COMPARTMENT (RHD GAS), RIGHT ENGINE COMPARTMENT (RHD DIESEL), LEFT ENGINE COMPARTMENT (LHD DIESEL)
|
Switch-Door Lock-Left Front (Except Base)
|
Natural
|
On left Front Door
|
N/S
|
Switch-Door Lock-Right Front (Except Base)
|
Natural
|
On Right Front Door
|
N/S
|
Switch-Evap System Monitor (Gas)
|
Black
|
At Evap Canister Near Fuel Tank
|
N/S
|
Switch-Hood Ajar (RHD Export)
|
Black
|
Left Front Engine Compartment
|
N/S
|
Switch-Horn
|
Black
|
On Steering Wheel
|
N/S
|
Switch-Ignition
|
Black
|
Steering Column
|
N/S
|
Switch-Locker-Front (Off Road)
|
Black
|
At Front Differential
|
N/S
|
Switch-Locker-Rear (Off Road)
|
Black
|
At Rear Differential
|
N/S
|
Switch-Oil Pressure (Gas)
|
Black
|
On Engine
|
N/S
|
Switch-Parking Brake
|
Black
|
Base of Brake Lever
|
FRONT CENTER BODY
|
Switch-Power Window-Front (Except Base)
|
Black
|
Center Instrument Panel
|
N/S
|
Switch-Power Window-Rear (4 Door Except Base)
|
White
|
Rear of Center Console
|
N/S
|
Switch-Seat Belt-Driver
|
Lt. Gray
|
Under Driver Seat at Retractor
|
N/S
|
Switch-Seat Belt-Passenger (Except Export)
|
Yellow
|
Under Passenger Seat at Retractor
|
N/S
|
Switch-Speed Control
|
Black
|
On Steering Wheel
|
N/S
|
Switch-Stop Lamp
|
Lt. Gray
|
At Base of Brake Pedal
|
N/S
|
Switch-Transfer Case (4WD)
|
Black
|
On Transmission
|
N/S
|
Throttle Body (Gas)
|
Black
|
On Engine
|
N/S
|
Transducer-A/C Pressure
|
Gray
|
On Engine
|
N/S
|
Wiring-Trailer Tow 4–Way
|
Black
|
Center Rear Chassis
|
N/S
|
SPLICES
Splice Number
|
Location
|
Fig.
|
S100
|
On Battery Cable
|
N/S
|
S101 (Diesel)
|
On Battery Cable
|
N/S
|
S102 (Gas)
|
On Engine
|
N/S
|
S103 (Diesel)
|
Rear Engine Compartment
|
RIGHT ENGINE COMPARTMENT (RHD DIESEL), LEFT ENGINE COMPARTMENT (LHD DIESEL)
|
S104 (Diesel)
|
Rear Engine Compartment
|
RIGHT ENGINE COMPARTMENT (RHD DIESEL), LEFT ENGINE COMPARTMENT (LHD DIESEL)
|
S107 (Diesel)
|
Rear Engine Compartment
|
RIGHT ENGINE COMPARTMENT (RHD DIESEL), LEFT ENGINE COMPARTMENT (LHD DIESEL)
|
S110 (Diesel)
|
On Battery Cable
|
N/S
|
S111
|
Rear Engine Compartment
|
LEFT ENGINE COMPARTMENT (LHD GAS), LEFT ENGINE COMPARTMENT (RHD GAS), LEFT ENGINE COMPARTMENT (RHD DIESEL), RIGHT ENGINE COMPARTMENT (LHD DIESEL)
|
S112
|
Rear Engine Compartment
|
LEFT ENGINE COMPARTMENT (LHD GAS), LEFT ENGINE COMPARTMENT (RHD GAS), LEFT ENGINE COMPARTMENT (RHD DIESEL), RIGHT ENGINE COMPARTMENT (LHD DIESEL)
|
S113 (Export)
|
Front Engine Compartment Near Ambient Air Temp Sensor T/O
|
N/S
|
S116 (Except Export)
|
Front Engine Compartment Near Ambient Air Temp Sensor T/O
|
N/S
|
S117 (Except Export)
|
Right Front Engine Compartment Near Headlamp Assembly
|
N/S
|
S118 (Export)
|
Left Front Engine Compartment Near Headlamp Assembly
|
N/S
|
S120 (Gas)
|
Passenger Side Rear Engine Compartment
|
RIGHT ENGINE COMPARTMENT (LHD GAS), LEFT ENGINE COMPARTMENT (RHD GAS)
|
S121 (Gas)
|
On Engine
|
N/S
|
S122 (Gas)
|
On Engine
|
N/S
|
S123 (Diesel)
|
On Engine
|
N/S
|
S128
|
On Engine
|
N/S
|
S129 (Gas)
|
On Engine
|
N/S
|
S130 (Gas)
|
On Engine
|
N/S
|
S131 (Gas)
|
On Engine
|
N/S
|
S132 (Gas)
|
On Engine
|
N/S
|
S133 (Gas)
|
On Engine
|
N/S
|
S135 (Export)
|
Front Engine Compartment Near Ambient Air Temp Sensor T/O
|
N/S
|
S136
|
On Engine
|
N/S
|
S137
|
On Engine
|
N/S
|
S138
|
On Engine
|
N/S
|
S143
|
On Engine
|
N/S
|
S152 (Off-Road)
|
Rear Engine Compartment
|
RIGHT ENGINE COMPARTMENT (LHD GAS), LEFT ENGINE COMPARTMENT (LHD DIESEL)
|
S162 (Diesel)
|
On Engine
|
N/S
|
S163 (Diesel)
|
On Engine
|
N/S
|
S169
|
Rear Engine Compartment
|
RIGHT ENGINE COMPARTMENT (LHD GAS), LEFT ENGINE COMPARTMENT (RHD GAS), RIGHT ENGINE COMPARTMENT (RHD DIESEL), RIGHT ENGINE COMPARTMENT (LHD DIESEL)
|
S171 (Diesel)
|
Rear Engine Compartment
|
RIGHT ENGINE COMPARTMENT (RHD DIESEL), RIGHT ENGINE COMPARTMENT (LHD DIESEL)
|
S172 (Diesel)
|
Passenger Side Rear Engine Compartment
|
LEFT ENGINE COMPARTMENT (RHD DIESEL), RIGHT ENGINE COMPARTMENT (LHD DIESEL)
|
S173 (Diesel)
|
Rear Engine Compartment
|
LEFT ENGINE COMPARTMENT (RHD DIESEL), RIGHT ENGINE COMPARTMENT (LHD DIESEL)
|
S174 (Diesel)
|
Rear Engine Compartment
|
LEFT ENGINE COMPARTMENT (RHD DIESEL), RIGHT ENGINE COMPARTMENT (LHD DIESEL)
|
S175 (Diesel)
|
Right Rear Engine Compartment
|
RIGHT ENGINE COMPARTMENT (LHD DIESEL)
|
S176 (Diesel)
|
Rear Engine Compartment
|
RIGHT ENGINE COMPARTMENT (RHD DIESEL), LEFT ENGINE COMPARTMENT (RHD DIESEL), LEFT ENGINE COMPARTMENT (LHD DIESEL)
|
S177 (Diesel)
|
Engine Compartment
|
N/S
|
S178 (Diesel)
|
Rear Engine Compartment
|
LEFT ENGINE COMPARTMENT (RHD DIESEL), RIGHT ENGINE COMPARTMENT (LHD DIESEL)
|
S179
|
Right Side Engine Compartment
|
RIGHT ENGINE COMPARTMENT (LHD GAS), 6 RIGHT ENGINE COMPARTMENT (RHD GAS), RIGHT ENGINE COMPARTMENT (RHD DIESEL), RIGHT ENGINE COMPARTMENT (LHD DIESEL)
|
S180
|
Right Side Engine Compartment
|
RIGHT ENGINE COMPARTMENT (LHD GAS), 6 RIGHT ENGINE COMPARTMENT (RHD GAS), RIGHT ENGINE COMPARTMENT (RHD DIESEL), RIGHT ENGINE COMPARTMENT (LHD DIESEL)
|
S221
|
Lower Driver Side Instrument Panel Near Stop Lamp Switch T/O
|
N/S
|
S222
|
Rear Engine Compartment Near Grommet to IP
|
N/S
|
S223
|
Lower Driver Side Instrument Panel Near Stop Lamp Switch T/O
|
N/S
|
S224
|
Rear Engine Compartment Near Grommet to IP
|
N/S
|
S233
|
Driver Side Instrument Panel Near Cluster T/Os
|
N/S
|
S234
|
Passenger Side Instrument Panel Near Blower T/O
|
N/S
|
S237
|
Steering Column Near Ignition Switch T/O
|
N/S
|
S238
|
Steering Column Near Ignition Switch T/O
|
N/S
|
S240
|
Passenger Side Instrument Panel Near Window Switch T/O
|
N/S
|
S242
|
Driver Side Instrument Panel Near Cluster T/Os
|
N/S
|
S243
|
Center Instrument Panel Near Center Stack T/O
|
N/S
|
S244
|
Center Instrument Panel Near Center Stack T/O
|
N/S
|
S245
|
Right Instrument Panel Near Tweeter T/O
|
N/S
|
S246
|
Driver Side Instrument Panel Near Cluster T/Os
|
N/S
|
S251
|
Rear Engine Compartment Near Grommet to IP
|
N/S
|
S253
|
Passenger Side Instrument Panel Near Blower T/O
|
N/S
|
S273
|
Passenger Side Instrument Panel Near Speaker T/O
|
N/S
|
S274
|
Passenger Side Instrument Panel Near Blower T/O
|
N/S
|
S290 (RHD)
|
Driver Side Front of Shifter
|
N/S
|
S291
|
Driver Side Front of Shifter
|
N/S
|
S292
|
Driver Side Front of Shifter
|
N/S
|
S293 (Except Export)
|
Instrument Panel
|
N/S
|
S294 (Except Export)
|
Instrument Panel
|
N/S
|
S295
|
Passenger Side Instrument Panel Near Window Switch T/O
|
N/S
|
S296
|
Passenger Side Instrument Panel Near Speaker T/O
|
N/S
|
S297
|
Rear Engine Compartment Near Grommet to IP
|
N/S
|
S301
|
Rear Fascia Near License Lamp T/O
|
N/S
|
S302
|
Rear Fascia Near C301 T/O
|
N/S
|
S307(Gas Off-Road)
|
Right Front Chassis Harness Near Wheel Speed Sensor T/O
|
N/S
|
S308
|
Right Front Chassis Harness Near Wheel Speed Sensor T/O
|
N/S
|
S330
|
Body Floor Under Right Seat
|
CENTER BODY
|
S331
|
Body Floor Under Left Seat
|
CENTER BODY
|
S332
|
Body Floor Under Right Seat
|
CENTER BODY
|
S333
|
Body Floor Under Right Seat
|
CENTER BODY
|
S334
|
Body Floor Under Left Seat
|
CENTER BODY
|
S335
|
Right Rear Body
|
REAR BODY AND SWINGGATE
|
S336
|
Right Rear Body
|
REAR BODY AND SWINGGATE
|
S351
|
Passenger Seat Near Seat Belt Switch T/O
|
N/S
|
S352
|
Passenger Seat Near OCM T/O
|
N/S
|
S353
|
Near Rear Power Window Switch
|
N/S
|
S371 (Trailer Tow)
|
Trailer Tow Jumper Near C311 T/O
|
N/S
|
S372 (Trailer Tow))
|
Trailer Tow Jumper Near C311 T/O
|
N/S
|
S373 (Trailer Tow)
|
Trailer Tow Jumper Near C311 T/O
|
N/S
|
