INSTALLATION

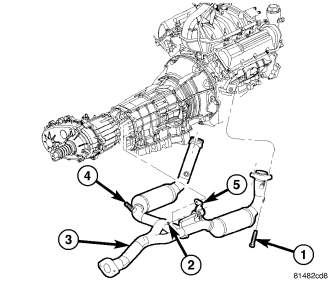

3.8L ENGINE
1. Position the front exhaust pipe and catalytic converter assembly (3) into the mount at the transmission (if equipped) and onto the exhaust manifold flange connection.
2. Install the nuts at the front exhaust pipe and catalytic converter assembly to muffler flange. Do not tighten.
3. Position the exhaust pipe for proper clearance with the frame and underbody parts. A minimum clearance of 25.4 mm (1.0 in.) is required.
4. Tighten the bolt (1) at exhaust manifold to 27 N·m (19 in. lbs.) torque.
5. Tighten the front exhaust pipe and catalytic converter assembly to muffler flange nuts to 27 N·m (19 ft. lbs.) torque.
6. Position the front pipe onto the exhaust manifold flange connection. Tighten the clamp to 10 N·m (95 in. lbs.) torque.
7. Connect oxygen sensor electrical connectors.
8. Lower the vehicle.
9. Start the vehicle and inspect for exhaust leaks. Repair exhaust leaks as necessary.
10. Check the exhaust system for contact with the body panels. Make adjustments, if necessary.

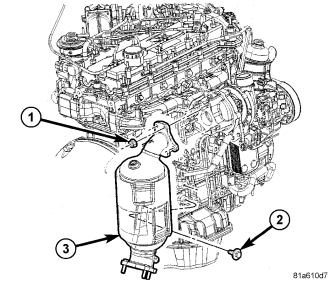

2.8L DIESEL
1. Position the front catalytic converter assembly (3) onto the turbocharger.
2. Install two catalytic converter mounting bolts. Tighten bolts to 27 N·m (19 ft. lbs.) torque.
3. Install DPF, if equipped (Refer to 11 - EXHAUST SYSTEM/PARTICULATE FILTER - REMOVAL).
4. Position the exhaust pipe for proper clearance with the frame and underbody parts. A minimum clearance of 25.4 mm (1.0 in.) is required.
5. Lower the vehicle.
6. Start the vehicle and inspect for exhaust leaks. Repair exhaust leaks as necessary.
7. Check the exhaust system for contact with the body panels. Make adjustments, if necessary.
