INSTALLATION
FRONT
1. Install the caliper (4) on the adapter.
2. Caliper slide pins should be free from debris and lightly lubricated..
3. Install the caliper slide pin bolts (3) and tighten to 35 N·m (26 ft. lbs.).
4. Gently lift one end of the slide pin boot to equalize air pressure, then release the boot and verify that the boot is fully covering the slide pin.
CAUTION: Verify brake hose is not twisted or kinked before tightening banjo bolt.
5. Install brake hose (1) to caliper (4) with new copper washers (6) and tighten banjo bolt (6) to 31 N·m (23 ft. lbs.).
6. Fill and bleed brake system.
7. Install wheel and tire assemblies.
8. Remove supports and lower vehicle.
9. Verify brake fluid level.
REAR
1. Install the brake pads if removed.
2. Install caliper to the caliper adapter.

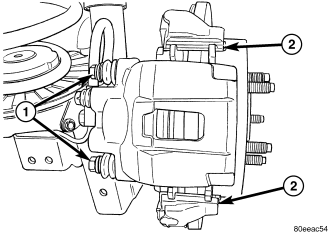

3. Coat the caliper mounting slide pin bolts (1) with silicone grease. Then install and tighten the bolts to 35 N·m (26 in. lbs.).
4. Install the brake hose banjo bolt if removed.
5. Install the brake hose to the caliper with new seal washers and tighten fitting bolt to 31 N·m (23 ft. lbs.).
CAUTION: Verify brake hose is not twisted or kinked before tightening fitting bolt.
6. Remove the prop rod from the vehicle.
7. Bleed the base brake system, (Refer to 5 - BRAKES - STANDARD PROCEDURE) OR (Refer to 5 - BRAKES - STANDARD PROCEDURE).
8. Install the wheel and tire assemblies (Refer to 22 - TIRES/WHEELS/WHEELS - STANDARD PROCEDURE).
9. Remove the supports and lower the vehicle.
10. Verify a firm pedal before moving the vehicle.
