HANDLE - EXTERIOR DOOR
REMOVAL
1. Remove the carrier plate, (Refer to 23 - BODY/DOOR - FULL FRONT/CARRIER PLATE - REMOVAL).

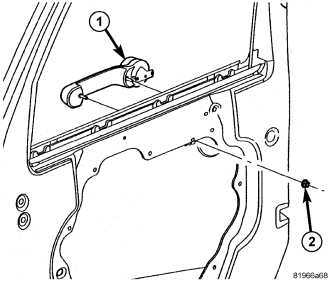

2. Remove the nut (2) and remove the handle (1).
INSTALLATION
1. Install the handle (1) and install the front nut (2).
2. Tighten the nut to 4.5 N·m (40 in. lbs.).
3. Install the carrier plate, (Refer to 23 - BODY/DOOR - FULL FRONT/CARRIER PLATE - INSTALLATION).
