HANDLE - INSIDE RELEASE
REMOVAL
1. Remove the door trim panel, (Refer to 23 - BODY/DOOR - FULL FRONT/TRIM PANEL - REMOVAL).

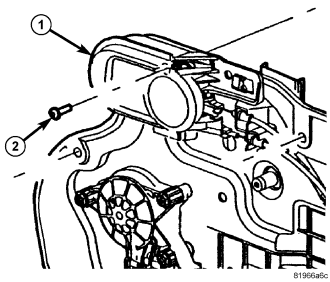

2. Remove the screw (2) securing the handle (1) to the carrier plate.

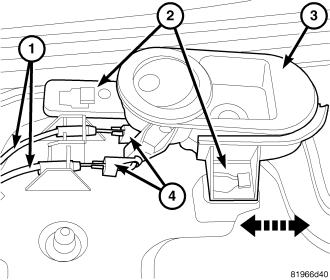

3. Disconnect the clips (4) and disconnect the cables (1).
4. Slide the handle (3) off of the retaining tabs (2) and remove.
INSTALLATION
1. Position the handle (3) onto the carrier plate tabs (2) and slide into place fully.
2. Connect the cables (1) and secure the clips (4).
3. Install the inside door handle screw (2) and tighten to 8.5 N·m (75 in. lbs.).
4. Install the trim panel (1), (Refer to 23 - BODY/DOOR - FULL FRONT/TRIM PANEL - INSTALLATION).
