MOUNTING BRACKET - LATCH
REMOVAL

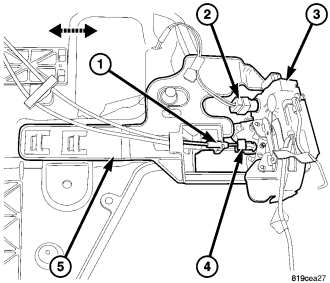

1. Remove the latch (3), (Refer to 23 - BODY/DOOR - FULL FRONT/DOOR - REMOVAL).
2. Slide the latch bracket (5) off of the carrier plate tabs and remove.
INSTALLATION
1. Slide the latch bracket (5) onto the carrier plate and secure fully.
2. Install the latch (3), (Refer to 23 - BODY/DOOR - FULL FRONT/DOOR - REMOVAL).
