REGULATOR - FRONT DOOR WINDOW
REMOVAL
1. Remove the carrier plate, (Refer to 23 - BODY/DOOR - FULL FRONT/CARRIER PLATE - REMOVAL).

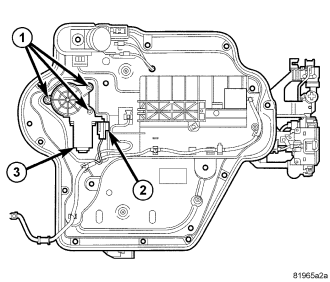

2. Remove the screws (1) and disconnect the electrical connector (2).
3. Remove the motor (3).

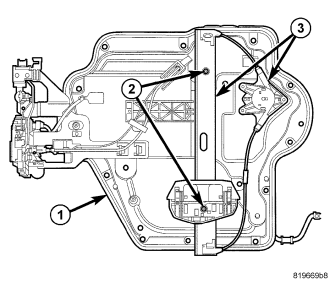

4. Remove the rail screws (2) and separate the lift regulator (3) from the carrier plate (1).
INSTALLATION
1. Position the regulator (3) onto the carrier plate (1) and install the screws (2).
2. Install the motor (3) and install the screws (1).
3. Connect the electrical connector (2).
4. Install the carrier plate, (Refer to 23 - BODY/DOOR - FULL FRONT/CARRIER PLATE - INSTALLATION).
