MOUNTING BRACKET - LATCH
REMOVAL

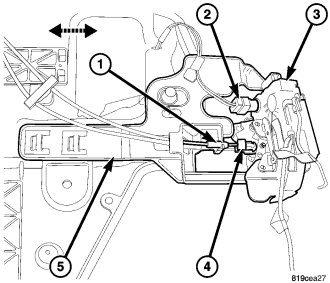

NOTE: Front door shown, rear door similar.
1. Remove the latch (3), (Refer to 23 - BODY/DOOR - FULL REAR/LATCH - REMOVAL)
2. Slide the latch bracket (5) off of the carrier plate tabs and remove.
INSTALLATION
NOTE: Front door shown, rear door similar.
1. Slide the latch bracket (5) onto the carrier plate and secure fully.
2. Install the latch (3), (Refer to 23 - BODY/DOOR - FULL REAR/LATCH - INSTALLATION)
