TRIM PANEL
REMOVAL

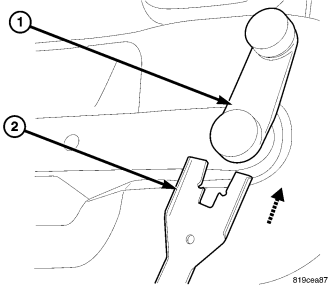

1. Using a standard window handle tool (2), release the handle clips and remove the handle (1) from the window lift mechanism, if equipped with a manual regulator.
NOTE: Full front door shown, rear door similar.

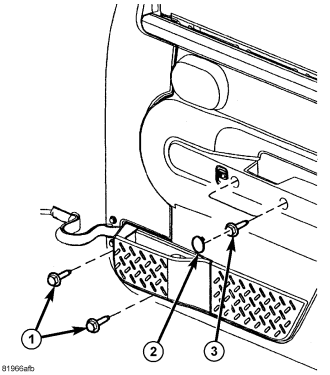

2. Remove the pull handle trim plugs (2) and remove the pull handle screws (3).
3. Remove the screws (1), if equipped.
NOTE: Full front door shown, rear door similar.
4. Using a trim stick C-4829 or equivalent, starting at the bottom by the check strap, separate the push pin fasteners (3) and remove the trim panel (1).
INSTALLATION
NOTE: Full front door shown, rear door similar.
1. Position the trim panel (1) into place and seat the push pin fasteners (3) fully.
NOTE: Full front door shown, rear door similar.
2. Install the pull handle screws (3) and install the trim caps (2).
3. Install the trim panel screws (1), if equipped.

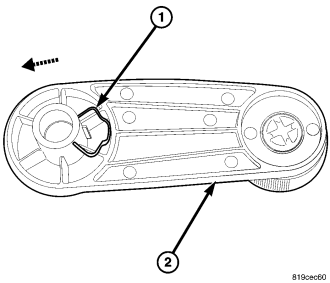

4. If equipped with a manual window regulator, position the window crank handle retaining clip (1) back into place and install the window crank handle (2) onto the lift mechanism shaft and seat fully.
