CYLINDER - DOOR LOCK
REMOVAL

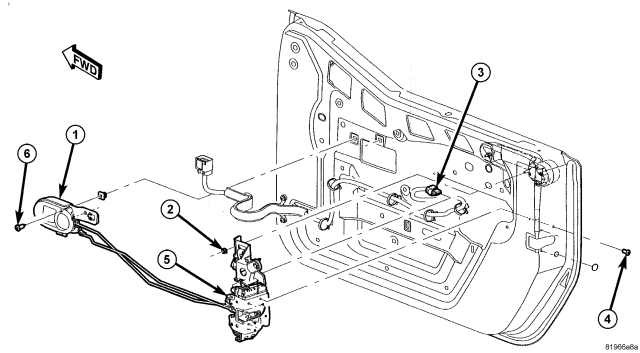

1. Remove the latch (5), (Refer to 23 - BODY/DOOR - HALF FRONT/LATCH - REMOVAL).
NOTE: Full door shown, half door similar.
2. Remove the clip (3) and separate the lock cylinder (2) and gasket (1) from the door.
INSTALLATION
NOTE: Full door shown, half door similar.
1. Assemble gasket (1) onto lock cylinder (2) until fully seated.
2. Install lock cylinder (2) into hole in outer door panel.
NOTE: Cylinder post must point forward.
NOTE: Cylinder drain hole must point down.
3. While holding lock cylinder (2) in place slide retainer clip (3) onto lock cylinder.
NOTE: Visually verify that pin on lock cylinder is engaged with bell crank 0n door module at door module install.
4. Install the latch (5), (Refer to 23 - BODY/DOOR - HALF FRONT/LATCH - INSTALLATION).
