TRIM PANEL
REMOVAL

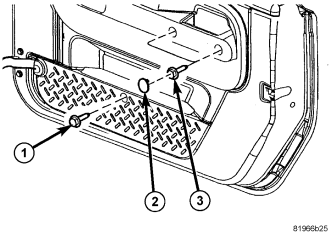

1. Remove the trim caps (2) and remove the pull handle screws (3).
2. Remove the lower screw (1).
3. Using a trim stick C-4829 or equivalent, separate the push pin fasteners (1) and remove the trim panel (2).
INSTALLATION
1. Position the trim panel (2) into place and seat the push pin fasteners (1) fully.
2. Install the lower screw (1).
3. Install the pull handle screws (3) and install the trim caps (2).
