2007 Wrangler JK Factory Service Manual 23 - BODY

WINDOW

REMOVAL

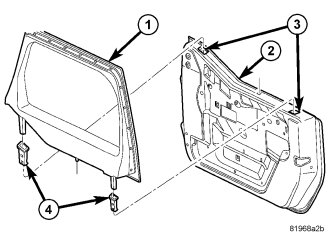

1. Open the door (2) and lift the window (1) out of the mounting holes (3).

INSTALLATION




1. If necessary, install the grommets (4) into the door holes (3) and seat fully.
2. Install the window (1) into the grommets (4) and seat fully.
