MODULE-POWERTRAIN CONTROL
REMOVAL

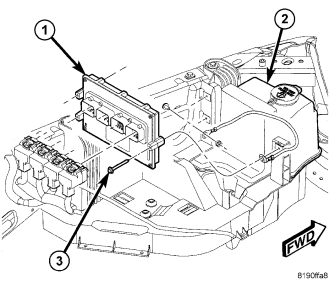

The PCM (Powertrain Control Module) (1) is located in the engine compartment near the windshield washer reservoir tank (2).
Use a diagnostic scan tool to reprogram the new Powertrain Control Module (PCM) with the vehicles original identification number (VIN) and the vehicles original mileage. If this step is not done, a Diagnostic Trouble Code (DTC) may be set.
To avoid possible voltage spike damage to the PCM, ignition key must be off, and negative battery cable must be disconnected before unplugging PCM connectors.
1. Disconnect negative battery cable at battery.
2. Remove plastic shields from over four electrical connectors. Shields snap to connectors.
3. Carefully unplug four electrical connectors from PCM.
4. Remove three PCM mounting bolts (3) and remove PCM from vehicle.
INSTALLATION
Use a diagnostic scan tool to reprogram the new Powertrain Control Module (PCM) with the vehicles original identification number (VIN) and the vehicles original mileage. If this step is not done, a Diagnostic Trouble Code (DTC) may be set.
1. Install PCM (1) and three mounting screws (3) to vehicle.
2. Tighten screws to 4 N·m (35 in. lbs.).
3. Check pin connectors in PCM and four electrical connectors for corrosion or damage. Also check pin heights in connectors. Pin heights should all be the same. Repair as necessary before installing electrical connectors.
4. Install four electrical connectors to PCM.
5. Install plastic shield to electrical connectors. Shields snap to connectors.
6. Install battery cable.
7. Use a diagnostic scan tool to reprogram new PCM with vehicles original Vehicle Identification Number (VIN) and original vehicle mileage.
