OIL COOLER & LINES
DESCRIPTION
1. The engine oil cooler, located on the right side of the engine, is an oil to coolant cooler.
REMOVAL
1. Disconnect the battery.
2. Drain the engine oil.

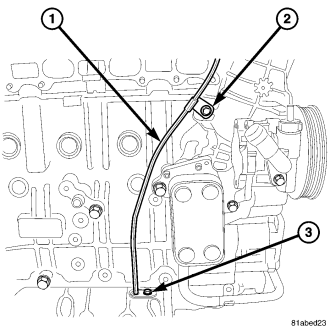

3. Remove the upper (2) and lower (3) dipstick bolts and remove the dipstick (1).
4. Remove the oil filter.

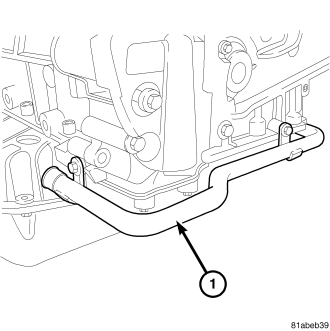

5. Disconnect the engine oil coolant line (1).

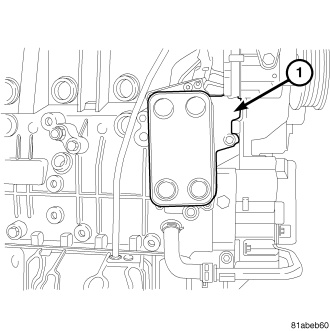

6. Remove the oil cooler.
INSTALLATION
1. Install the oil cooler.
2. Connect the engine oil coolant line (1).
3. Install the oil filter.
4. Install the dipstick (1).
5. Connect the battery.
6. Fill the engine oil.
