ELEMENT-AIR CLEANER
REMOVAL

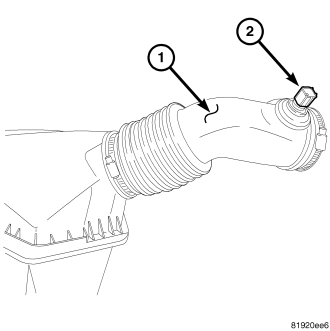

1. Disconnect the IAT sensor (2).
2. Disconnect the CCV hose.
3. Separate the air inlet tube from the throttle body.
4. Remove the air cleaner cover bolts.
5. Lift cover and pull toward the engine and remove cover tabs from air cleaner housing.
6. Lift cover and remove the filter.
INSTALLATION
1. Install the air filter element into air box.
2. Move cover so that the tabs insert into the air cleaner housing.
3. Position the cover down over the element and lower housing and tighten the fasteners.
4. Connect the air inlet tube to the throttle body and tighten the clamp.
5. Connect the IAT sensor (2).
6. Connect the CCV hose.
