PLATE-FLEX
REMOVAL
1. Remove the transmission.
2. Remove flex plate attaching bolts.

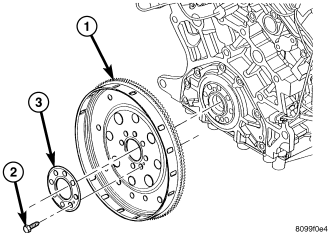

3. Remove the flex plate (1).
INSTALLATION
1. Position flex plate (1) with backing plate on the crankshaft.
2. Apply Mopar® Lock & Seal Adhesive to the flex plate bolts.
3. Install flex plate bolts. Tighten bolts to 95 N·m (70 ft. lbs.).
4. Install the transmission.
