RETAINER-OIL SEAL-CRANK REAR
REMOVAL
1. Remove crankshaft rear oil seal (Refer to 9 - ENGINE/ENGINE BLOCK/CRANKSHAFT OIL SEAL - REAR - REMOVAL).
2. Remove oil pan (Refer to 9 - ENGINE/LUBRICATION/OIL PAN - REMOVAL).
3. Remove oil seal retainer screws .
4. Remove oil seal retainer .
5. Clean engine block and retainer of oil and gasket material. Make sure surfaces are clean and free of oil.
INSTALLATION

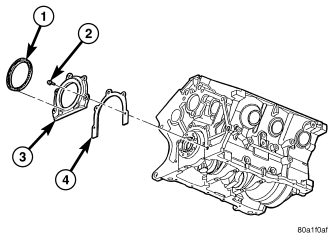

1. Position new gasket and install retainer (3) on block . Tighten attaching screws (2) to 12 N·m (105 in. lbs.).
2. Install oil pan (Refer to 9 - ENGINE/LUBRICATION/OIL PAN - INSTALLATION).
3. Install oil seal (Refer to 9 - ENGINE/ENGINE BLOCK/CRANKSHAFT OIL SEAL - REAR - INSTALLATION).
