HEATER-CRANKCASE 2.8L DIESEL
REMOVAL

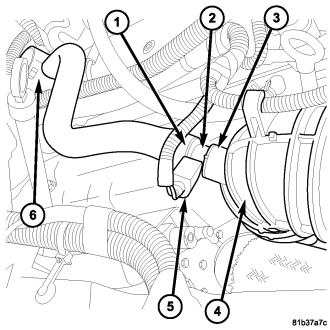

The crankcase heater (2) is located in the hose (1) leading to the crankcase breather (6).
1. Disconnect electrical connector (5).
2. Separate hose (1) from heater.
3. Separate heater from hose (3).
INSTALLATION
The crankcase heater (2) is located in the hose (1) leading to the crankcase breather (6).
1. Twist heater (2) into hose (3).
2. Twist hose (1) into heater.
3. Connect electrical connector (5).
