SOLENOID-EGR
REMOVAL

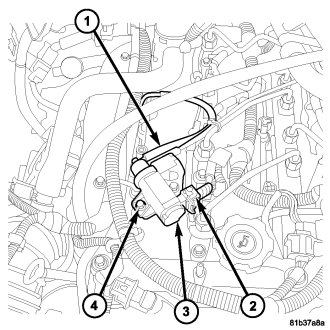

The EGR Solenoid (3) is located on the top of valve cover.
1. Disconnect electrical connector (2).
2. Disconnect vacuum/pressure lines (1).
3. Remove two mounting bolts (4) and remove solenoid.
INSTALLATION
The EGR Solenoid (3) is located on the top of valve cover.
1. Position solenoid (3) to valve cover and install two mounting bolts (4).
2. Connect electrical connector (2).
3. Connect vacuum/pressure lines (1).
