BODY DECALS
REMOVAL

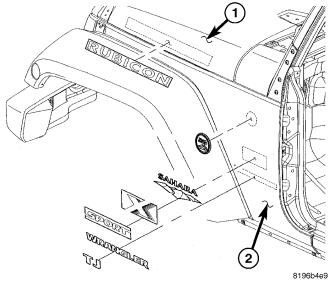

1. Apply a length of masking tape on the body (2) and hood (1), parallel to the top edge of the nameplate to use as a guide, if necessary.

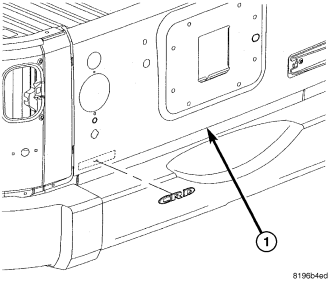

2. Apply a length of masking tape on the body (1), parallel to the top edge of the nameplate to use as a guide, if necessary.
NOTE: Exterior nameplates are attached to body panels with adhesive tape.
3. If temperature is below 21°C (70°F) warm emblem with a heat lamp or gun. Do not exceed 52°C (120°F) when heating emblem.
CAUTION: Use care when separating the emblem from the body surface to avoid scratching the paint.
4. Using a trim stick C-4755 or equivalent, behind the emblem to separate the adhesive backing from the body.
5. Clean adhesive residue from body with MOPAR® Super Clean solvent or equivalent.
INSTALLATION
NOTE: Make sure the body surface is completely clean before applying the emblem.
1. Remove protective cover from adhesive tape on back of emblem.
2. Position the correct emblem properly on the body (2) and hood (1).
3. Position the correct emblem properly on the body (1).
4. Press emblem firmly to the body with the palm of hand.
5. If temperature is below 21°C (70°F) warm emblem with a heat lamp or gun to assure adhesion. Do not exceed 52°C (120°F) when heating emblem.
