GRILLE
REMOVAL

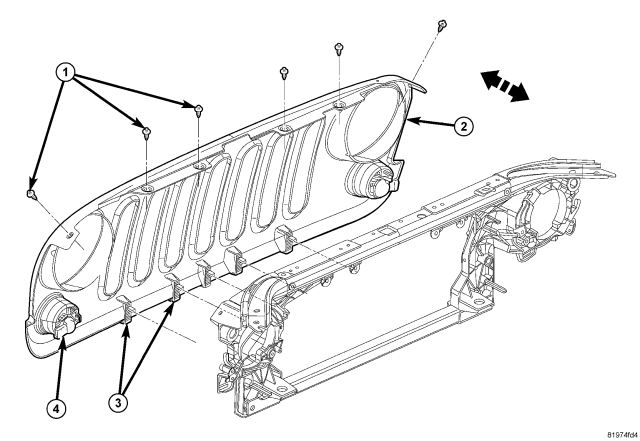

1. Twist the center of the push pin insert to release and remove the six push pin fasteners (1)
2. Using a trim stick C-4755 or equivalent, Release the lower clips (3) and separate the grille from the front end module.
3. Disconnect the electrical connectors (4).
INSTALLATION
1. Connect the electrical connectors (4).
2. Position the grille (2) onto the front end module and seat the clips (3) fully.
3. Install the push pin fasteners (1).
