2007 Wrangler JK Factory Service Manual 23 - BODY

MIRROR - OUTSIDE REARVIEW

REMOVAL

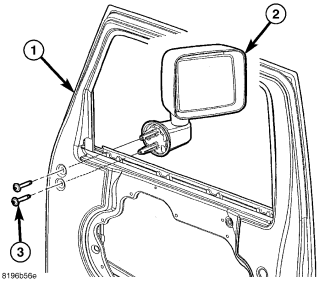

1. Remove the bolts (3) and separate the mirror (2) from the door (1).

INSTALLATION




1. Install the mirror (2) onto the door and install the bolts (3).
2. Tighten the bolts to 13 N·m (9.5 ft. lbs.).
