PANEL - COWL TOP
REMOVAL
1. Remove the wiper arms, (Refer to 8 - ELECTRICAL/WIPERS/WASHERS/WIPER ARMS - REMOVAL).

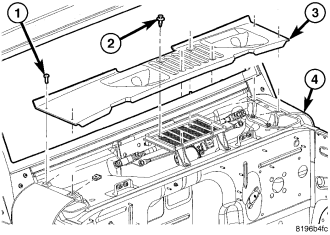

2. Remove the bolts (1) from the cowl trim panel (3).
3. Remove the push/pins (2) from the cowl trim panel (3).
4. Remove the cowl trim panel (3) from the body (4) of the vehicle.
INSTALLATION
1. Install the cowl trim panel (3) to the body (4) of the vehicle.
2. Install the push/pins (2) to the cowl trim panel (3).
3. Install the bolts (1) to the cowl trim panel (3).
4. Install the wiper arms, (Refer to 8 - ELECTRICAL/WIPERS/WASHERS/WIPER ARMS - INSTALLATION).
