BEARINGS-DIFFERENTIAL CASE
REMOVAL

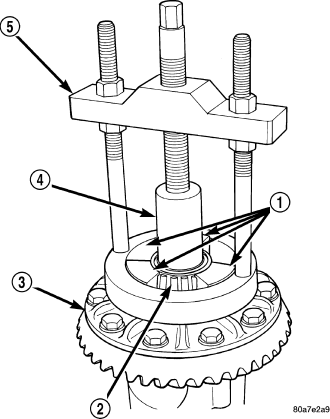

1. Remove bearings (2) from the differential case (3) with Puller C-293-PA (5) Adapter C-293-39 (1) and Plug SP-3289 (4).
INSTALLATION

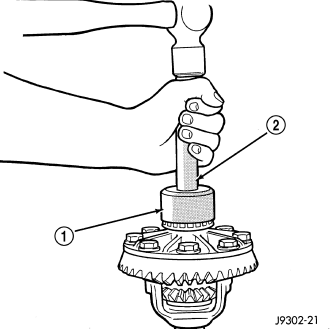

1. Install differential side bearings with Installer C-3716-A (1) and Handle C-4171 (2).
