BEARINGS-DIFFERENTIAL CASE
REMOVAL
1. Remove differential case from axle housing.

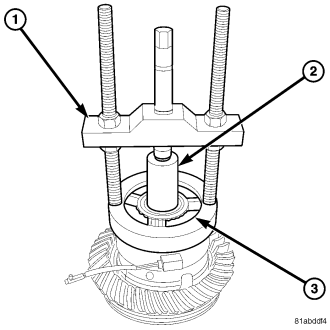

2. Remove bearings from the differential case with Puller C-293-PA (1), Plug C-293-3 (2), and Adapters C-293-47 (3).
INSTALLATION

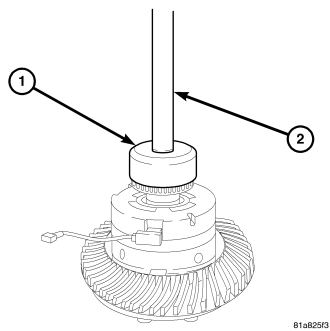

1. Install differential side bearings with Installer C-4213 (1) and Handle C-4171 (2).
2. Install differential into the housing.
