COVER-DIFFERENTIAL
REMOVAL
1. With transmission in neutral, position vehicle on hoist.
2. Remove fill plug (1).
3. Remove cover (2) bolts.
4. Remove cover and drain lubricant.
INSTALLATION

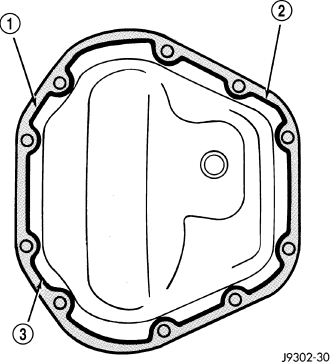

1. Apply a 6.35mm (1/4 in.) bead of Mopar Silicone Rubber Sealant (3) or equivalent to the housing cover .
CAUTION: If housing cover is not installed within 3 to 5 minutes, the cover must be cleaned and new RTV applied. Failure to heed caution may result in damage.
2. Install differential cover (2), and tighten cover bolts in a criss-cross pattern to 41 N·m (30 ft. lbs.).
3. Fill differential to specifications.
4. Install fill plug and tighten to 34 N·m (25 ft. lbs.).
