STABILIZER LINK

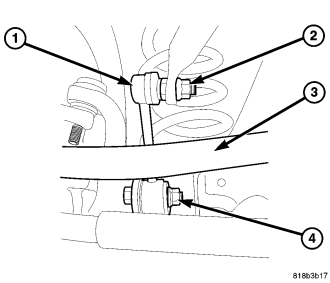

REMOVAL
1. Raise and support the vehicle.
2. Remove the left upper stabilizer bar link nut (1) from the stabilizer bar.
3. Remove the left lower stabilizer bar link bolt (4) to the axle.
4. Remove the right upper stabilizer bar link nut (2) from the stabilizer bar.
5. Remove the right lower stabilizer bar link bolt (4) to the axle.
6. Remove the stabilizer link (1).

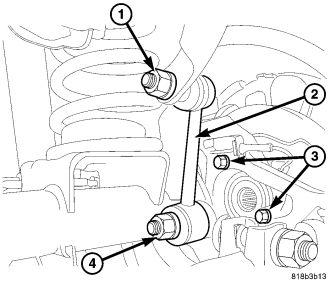

INSTALLATION
NOTE: Stabilizer bar link to axle bolt should be tightened with vehicle sitting on its tires
1. Install the stabilizer link (1) to the vehicle.
2. Install the right lower stabilizer bar link bolt (4) to the axle. Tighten to 102 N·m (75 ft. lbs.).
3. Install the right upper stabilizer bar link nut (2) to the stabilizer bar. Tighten to 102 N·m (75 ft. lbs.).
4. Install the left lower stabilizer bar link bolt (4) to the axle. Tighten to 102 N·m (75 ft. lbs.).
5. Install the left upper stabilizer bar link nut (1) to the stabilizer bar. Tighten to 102 N·m (75 ft. lbs.).
6. Remove the support and lower the vehicle.
