SENSOR-WATER IN FUEL
DESCRIPTION

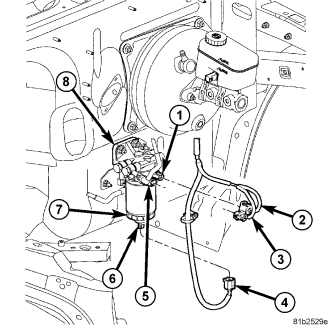

The combination drain valve/Water-In-Fuel (WIF) sensor (6) is located on the bottom of the fuel filter/water separator filter canister.
OPERATION
The sensor sends an input to the Engine Control Module (ECM) when it senses water in the fuel filter/water separator. As the water level in the filter/separator increases, the resistance across the WIF sensor decreases. This decrease in resistance is sent as a signal to the ECM and compared to a high water standard value. Once the value reaches 30 to 40 kilohms, the ECM will activate the water-in-fuel warning lamp through CCD bus circuits. This all takes place when the ignition key is initially put in the ON position. The ECM continues to monitor the input while the engine is running.
REMOVAL
The Water-In-Fuel (WIF) sensor is located at the bottom of fuel filter/water separator canister. Refer to Separator–Fuel Filter/Water for removal and installation procedures.
