SENSOR-INTAKE AIR PRESSURE
REMOVAL

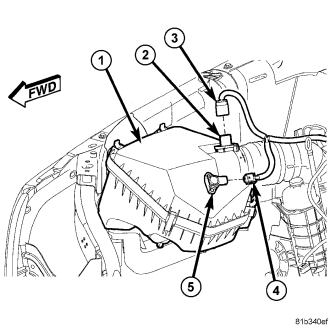

The Inlet Pressure Sensor (5) is located on the air cleaner cover (1).
1. Disconnect electrical connector (4) at sensor.
2. Remove mounting screws.
3. Remove sensor from air cleaner cover.
INSTALLATION
1. Check condition of sensor O-ring.
2. Position Inlet Pressure Sensor (5) into top of air cleaner cover with a slight twisting action.
3. Install mounting screw.
4. Install Inlet Pressure Sensor electrical connector (4).
