SENSOR - MAP
REMOVAL

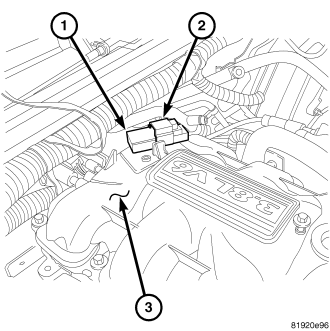

The MAP sensor (1) is installed into the rear of the upper intake manifold (3).
1. Disconnect electrical connector from MAP sensor.
2. Clean dirt from MAP sensor base.
3. Pull up on MAP sensor while rotating counterclockwise about 1/4 turn for removal.
4. Check condition of sensor O-ring.
INSTALLATION
The MAP sensor (1) is installed into the rear of the upper intake manifold (3).
1. Check condition of sensor O-ring.
2. Clean dirt from MAP sensor base.
3. Push down on MAP sensor while rotating clockwise about 1/4 turn for installation.
4. Disconnect electrical connector from MAP sensor.
