SPECIFICATIONS

GAP AND FLUSH

INDEX

DESCRIPTION	FIGURE
TWO DOOR	TWO DOOR - JK72
FOUR DOOR	FOUR DOOR - JK74

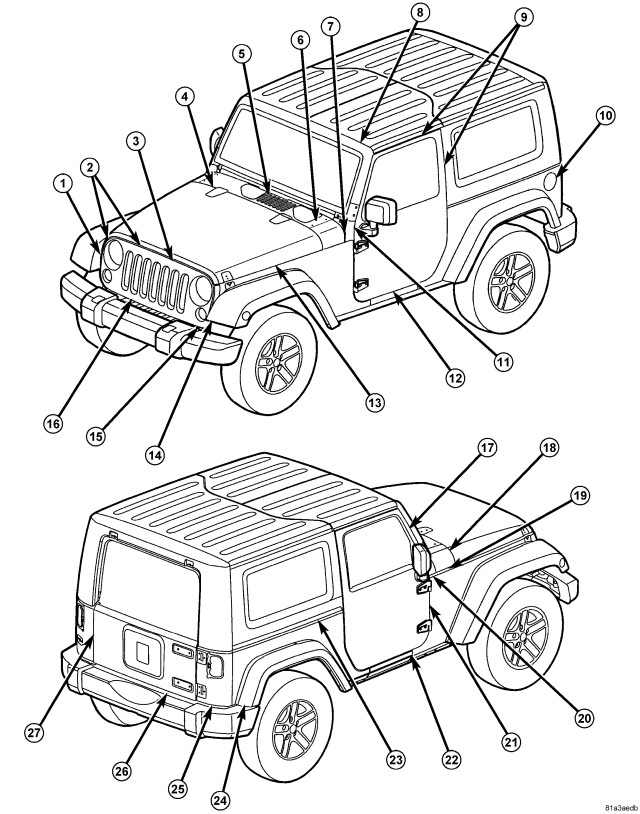

TWO DOOR - JK72

NOTE: All dimensions are in millimeters.

GAP AND FLUSH MEASUREMENTS

DIMENSION	DESCRIPTION	GAP	FLUSH
1	Fender to Grille	--	0.0 +/- 2.0
2	Hood/Fender to Grille	7.0 +/- 2.0 Parallel within 1.5 Side to Side 2.0	--
3	Hood to Grille	--	Hood O/F 1.0 +/- 2.0 Parallel within 1.5
4	Hood to Cowl Grille	7.0 +/- 2.0 Parallel within 1.5	0.0 +/- 2.0
5	Cowl Grille to Windshield	5.0 +/- 2.0 Parallel within 1.5	0.0 +/- 2.0
6	Cowl Grille to Cowl End Cap	5.5 +/- 1.5	0.0 +/- 1.5
7	Cowl Panel Windshield Reinforcement	To Windshield 4.0 +/- 1.5 Parallel within 1.5 To Cowl End Cap 3.0 +/- 2.0	--
8	Windshield to Hard/Soft Top	5.0 +/- 2.0 Parallel within 2.0	O/F 1.0 +/-2.0
9	Hard/Soft Top to Front Door	5.0 +/- 2.0 Parallel within 1.5	12.0 +/- 2.0 at Drip Rail 0.0 +/- 1.5 at Belt Line
10	Fuel Filler Door to Body Side	0.0 + 1.5/-0.0	--
11	Windshield Reinforcement to Door	5.0 +/- 1.5 Parallel within 1.5	0.0 +/- 1.5
12	Front Door to Body Side	5.0 +/- 1.5 Parallel within 1.5	0.0 +/- 1.5 Allow additional +/- 0.5 with Side Curtain
13	Hood to Fender	6.0 +/- 1.5 Parallel within 1.5	0.0 +/- 1.5
14	Fender/Wheel Flare to Fascia	16.0 +/- 4.0 Parallel within 3.0	--
15	Grille to Bumper	11.0 +/- 4.0 Parallel within 3.0	--
16	Grille to Valance Cover	13.0 +/- 4.0	--
17	Windshield to Door	5.0 +/- 1.5 Parallel within 1.5	0.0 +/- 1.5 Allow additional +/- 0.5 with Side Curtain
18	Hood to Cowl Grille End Cap	7.0 +/- 2.0 Parallel within 1.5	0.0 +/- 1.5
19	Cowl End Cap to Fender	5.5 +/- 1.5 Parallel within 1.5	0.0 +/- 1.5
20	Windshield Reinforcement to Fender	7.0 +/- 2.0	0.0 +/- 1.5
21	Fender to Door	5.0 +/- 1.5 Parallel within 1.5	0.0 +/- 1.5
22	Fender to Body Side	5.0 +/- 1.5	0.0 +/- 1.5
23	Hard/Soft Top to Body	16.0 +/- 1.5 Parallel within 1.5	0.0 +/- 1.5
24	Rear Bumper to Wheel Flare	19.0 +/- 5.0	0.0 +/- 4.0
25	Rear Bumper to Body Side	13.0 +/- 3.0	--
26	Rear Bumper to Swing Gate	34.5 +/- 3.0 Parallel within 3.0	--
27	Swing Gate to Body	5.0 +/- 1.5 Parallel within 1.5 Side to Side 2.0	0.0 +/- 1.5 Parallel within 1.5

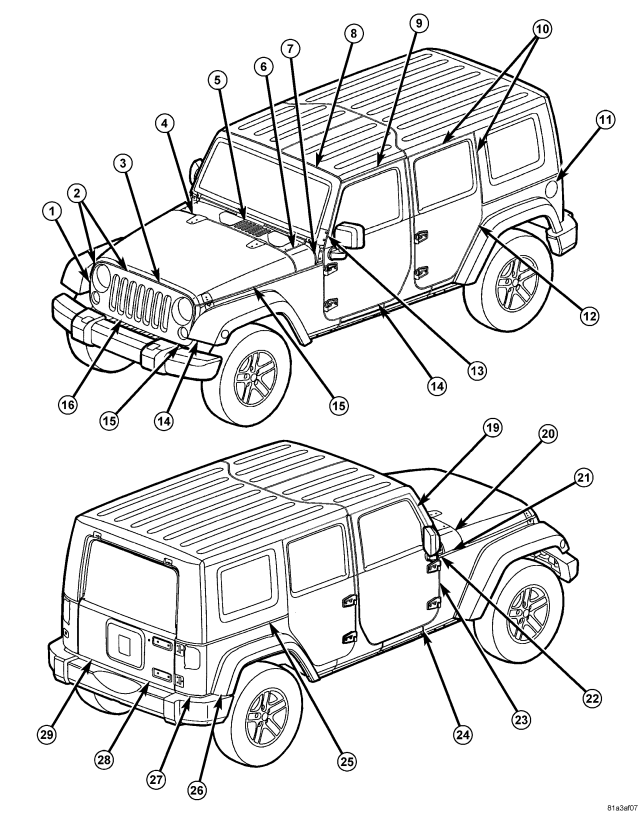

FOUR DOOR - JK74

NOTE: All dimensions are in millimeters.

DIMENSION	DESCRIPTION	GAP	FLUSH
1	Fender to Grille	--	0.0 +/- 2.0
2	Hood/Fender to Grille	7.0 +/- 2.0 Parallel within 1.5 Side to Side 2.0	--
3	Hood to Grille	--	Hood O/F 1.0 +/- 2.0 Parallel within 1.5
4	Hood to Cowl Grille	7.0 +/- 2.0 Parallel within 1.5	0.0 +/- 2.0
5	Cowl Grille to Windshield	5.0 +/- 2.0 Parallel within 1.5	0.0 +/- 2.0
6	Cowl Grille to Cowl End Cap	5.5 +/- 1.5	0.0 +/- 1.5
7	Cowl Panel Windshield Reinforcement	To Windshield 4.0 +/- 1.5 Parallel within 1.5 To Cowl End Cap 3.0 +/- 2.0	--
8	Windshield to Hard/Soft Top	5.0 +/- 2.0 Parallel within 2.0	O/F 1.0 +/-2.0
9	Hard/Soft Top to Front Door	5.0 +/- 2.0 Parallel within 1.5	12.0 +/- 2.0
10	Hard/Soft Top to Rear Door	5.0 +/- 2.0 Parallel within 1.5	12.0 +/- 2.0 at Drip Rail 0.0 +/- 1.5 at Belt Line
11	Fuel Filler Door to Body Side	0.0 + 1.5/-0.0	--
12	Rear Door to Body Side	5.0 +/- 1.5 Parallel within 1.5	0.0 +/- 1.5 Allow additional +/- 0.5 with Side Curtain
13	Windshield Reinforcement to Door	5.0 +/- 1.5 Parallel within 1.5	0.0 +/- 1.5
14	Front Door to Body Side	5.0 +/- 1.5 Parallel within 1.5	0.0 +/- 1.5 Allow additional +/- 0.5 with Side Curtain
15	Hood to Fender	6.0 +/- 1.5 Parallel within 1.5	0.0 +/- 1.5
16	Fender/Wheel Flare to Fascia	16.0 +/- 4.0 Parallel within 3.0	--
17	Grille to Bumper	11.0 +/- 4.0 Parallel within 3.0	--
18	Grille to Valance Cover	13.0 +/- 4.0	--
19	Windshield to Door	5.0 +/- 1.5 Parallel within 1.5	0.0 +/- 1.5 Allow additional +/- 0.5 with Side Curtain
20	Hood to Cowl Grille End Cap	7.0 +/- 2.0 Parallel within 1.5	0.0 +/- 1.5
21	Cowl End Cap to Fender	5.5 +/- 1.5 Parallel within 1.5	0.0 +/- 1.5
22	Windshield Reinforcement to Fender	7.0 +/- 2.0	0.0 +/- 1.5
23	Fender to Door	5.0 +/- 1.5 Parallel within 1.5	0.0 +/- 1.5
24	Fender to Body Side	5.0 +/- 1.5	0.0 +/- 1.5
25	Hard/Soft Top to Body	16.0 +/- 1.5 Parallel within 1.5	0.0 +/- 1.5
26	Rear Bumper to Wheel Flare	19.0 +/- 5.0	0.0 +/- 4.0
27	Rear Bumper to Body Side	13.0 +/- 3.0	--
28	Rear Bumper to Swing Gate	34.5 +/- 3.0 Parallel within 3.0	--
29	Swing Gate to Body	5.0 +/- 1.5 Parallel within 1.5 Side to Side 2.0	0.0 +/- 1.5 Parallel within 1.5
