CATCH - HOOD
REMOVAL

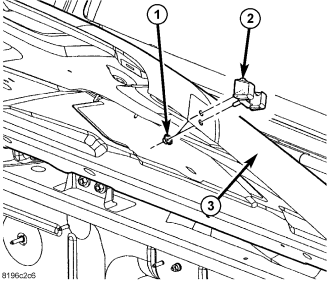

1. Open the hood.
2. Remove the nuts (2) and remove the hood catch (1).

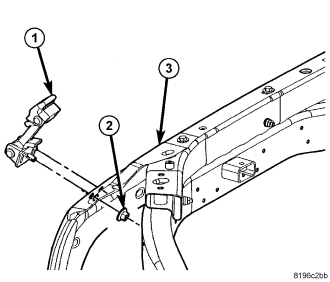

3. Remove the nuts (1) and remove the catch bracket (2).
INSTALLATION
1. Install the catch bracket (2) and install the nuts (1).
2. Tighten the nuts to 7 N·m (5 ft. lbs.).
3. Install the hood catch (1) and install the nuts (2).
4. Tighten the nuts to 15 N·m (11 ft. lbs.).
