2007 Wrangler JK Factory Service Manual 23 - BODY

HOOK - SAFETY CATCH

REMOVAL

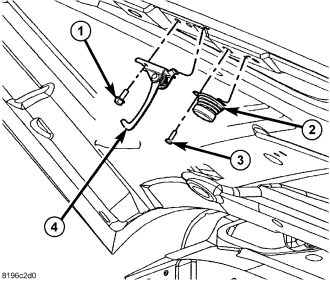

1. Remove the bolt (1) and remove the safety catch (4).

INSTALLATION




1. Install the safety catch (4) and install the bolt (1).
2. Tighten the bolt to 11 N·m (8 ft. lbs.).
