2007 Wrangler JK Factory Service Manual 19 - STEERING

DESCRIPTION

PRESSURE LINE

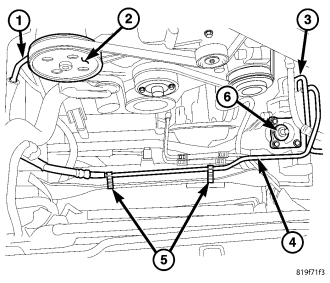

The pressure hose (4) consists of two metal ends two rubber sections and one center metal section. The hose connects to the gear box (6) and to the power steering pump (1).

RETURN LINE

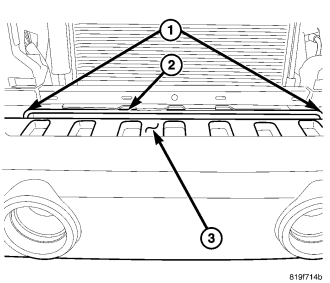

Power steering return line (2) is a hose which is clamped at the reservoir and torqued at the gear mounted under the grille.

DESCRIPTION

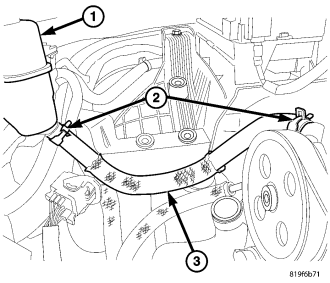

The supply hose (3) consists of a rubber section that is clamped at the reservoir and pump (2).
