COIL - IGNITION 3.8L
REMOVAL - 3.8L

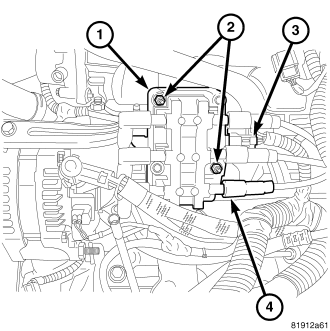

The ignition coil pack (1) is located above the left valve cover
1. Disconnect negative battery cable.
2. Remove six spark plug cables (4).
3. Disconnect electrical connector (3) from ignition coil.
4. Remove two coil mounting nuts (2).
5. Pull coil pack from mounting studs.
INSTALLATION - 3.8L
1. Install coil pack over mounting studs.
2. Install two mounting nuts (2).
3. Connect electrical connector (3) to ignition coil.
4. Install six ignition cables (4) to ignition coil.
5. Connect negative battery cable.
