GLOW PLUG RELAY
REMOVAL

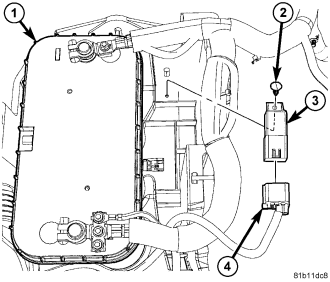

1. RIGHT HAND DRIVE:
2. The glow plug relay (3) is located near the front of the battery (1).
3. Disconnect negative battery cable.
4. Carefully pull out mounting pin (2).
5. Disconnect electrical connector (4) from relay.

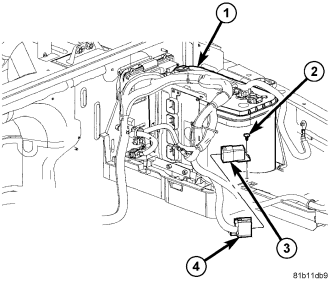

6. LEFT HAND DRIVE:
7. The glow plug relay (3) is located near the side of the battery (1).
8. Disconnect negative battery cable.
9. Carefully pull out mounting pin (2).
10. Disconnect electrical connector (4) from relay.
INSTALLATION
1. RIGHT HAND DRIVE:
2. The glow plug relay (3) is located near the front of the battery (1).
3. Connect electrical connector (4) to relay.
4. Push mounting pin (2) through relay (3).
5. Connect negative battery cable.
6. LEFT HAND DRIVE:
7. The glow plug relay (3) is located near the side of the battery (1).
8. Connect electrical connector (4) to relay.
9. Push mounting pin (2) through relay (3).
10. Connect negative battery cable.
