SPECIFICATIONS
TORQUE
DESCRIPTION |
N·m |
Ft. Lbs. |
In. Lbs. |
| Camshaft Sensor Mounting Bolt — 3.8L |
14.1 |
- |
125 |
| Camshaft Sensor Mounting Bolt — 2.8L Diesel |
11 |
8 |
97 |
| Ignition coil bolts — 3.8L |
11.8 |
- |
105 |
| Spark Plugs — 3.8L |
17.5 |
13 |
- |
| Glow Plugs — 2.8L Diesel |
14 |
10 |
124 |
| Knock Sensor — 3.8L |
10 |
7 |
- |
SPARK PLUG CABLE RESISTANCE
| MINIMUM |
MAXIMUM |
| 250 Ohms Per Inch |
1000 Ohms Per Inch |
| 3000 Ohms Per Foot |
10,000 Ohms Per Foot |
SPARK PLUG
| Engine |
Spark Plug |
Gap |
Thread Size |
| 3.8L |
RE14PLP5 |
0.048 TO 0.053 |
14mm (1 in. ) reach |

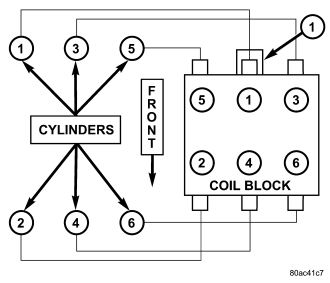

FIRING ORDER - 3.8L
