CLUSTER BEZEL
REMOVAL
1. Remove the steering column opening cover, (Refer to 23 - BODY/INSTRUMENT PANEL/STEERING COLUMN OPENING COVER - REMOVAL).

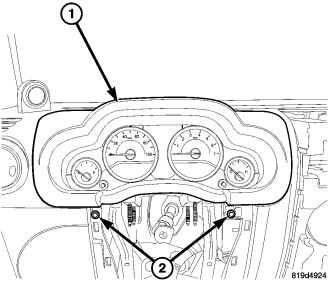

2. Remove the screws (2), release the retaining clips and remove the bezel (1).
INSTALLATION
1. Position the bezel (1) into place and seat the clips fully.
2. Install the screws (2).
3. Install the steering column opening cover, (Refer to 23 - BODY/INSTRUMENT PANEL/STEERING COLUMN OPENING COVER - INSTALLATION).
