2007 Wrangler JK Factory Service Manual 23 - BODY

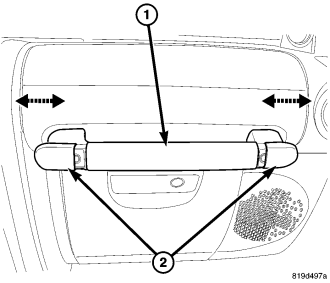

GRAB HANDLE

REMOVAL




1. Using a trim stick C-4755 or equivalent, slide the grab handle trim caps (2) off the trim handle (1).



2. Remove the bolts (2) and remove the grab handle (1).

INSTALLATION




1. Install the grab handle (1) and install the bolts (2).



2. Install the trim caps (2) onto the handle (1) and slide into place.
