SPORT BAR - SPEAKER POD
REMOVAL

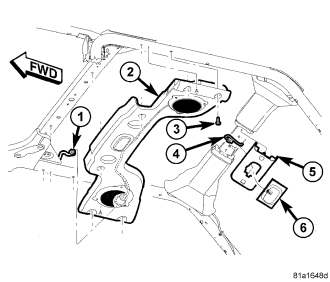

1. Remove the hard top thump screws (7), if equipped.
2. Remove the four screws (3) and lower the speaker pod (2).
3. Disconnect the electrical connector (1) and remove the speaker pod.
INSTALLATION
1. Connect the electrical connector (1) and position the speaker pod (2) onto the sport bar.
2. Install the four screws (3) and tighten to 10 N·m (90 ft. lbs.).
3. Install the hard top thumb screws (7).
